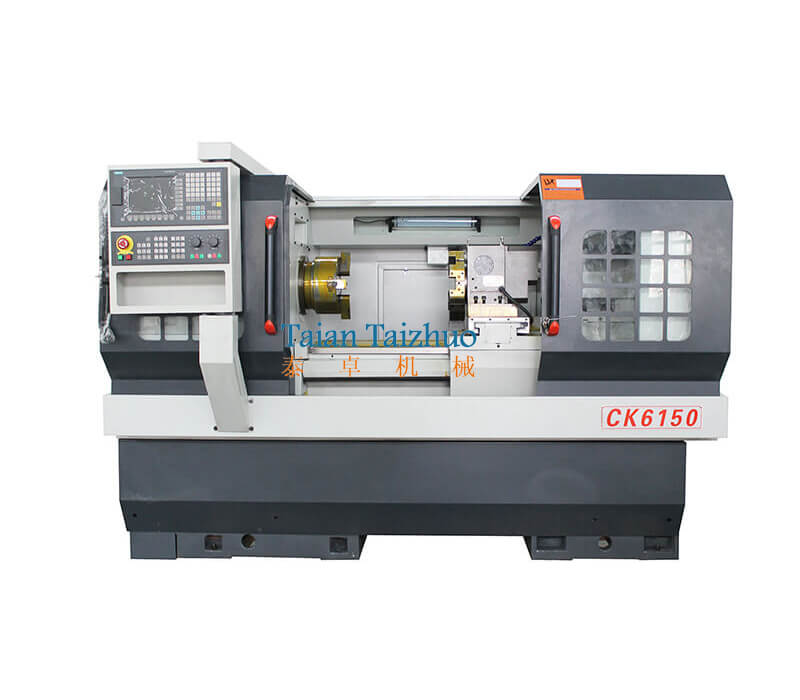

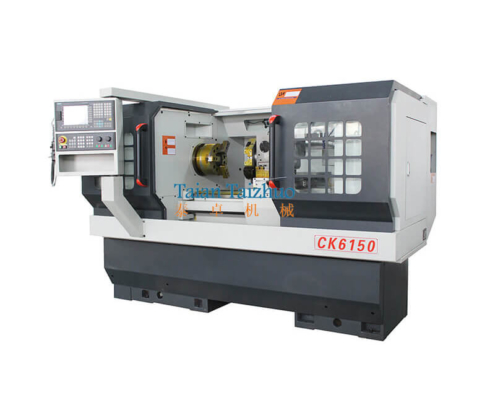

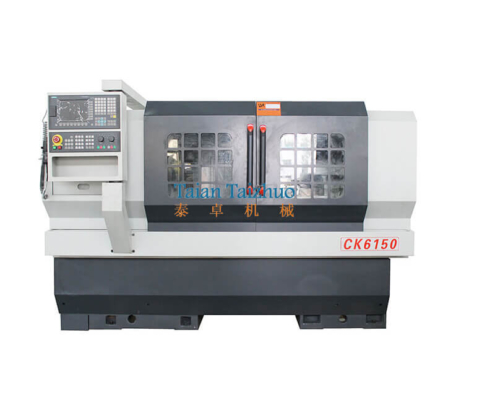

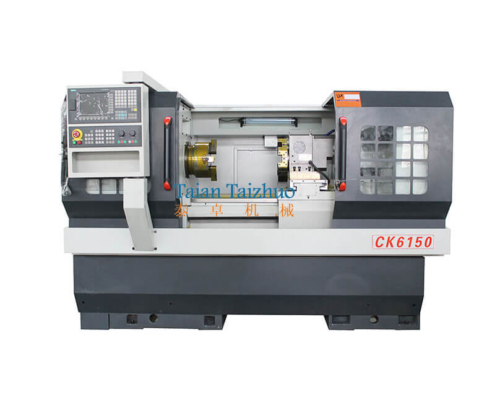

CK6150 Flat Bed CNC Lathe Machine China Suppliers

CNC Lathe Machine Datasheet

Item

CK6150

Max. rotation diameter over bed

500mm

Max. rotation diameter over pallet

300mm

Max. workpiece length

750mm

Lathe bed width

400mm

Main transmission form

Independent spindle

Speed mode

Frequency stepless speed

Spindle speed range

150-2000 r/min

Spindle head form

8-D

Spindle bore

82mm

Spindle centering axial taper

1:4

Spindle taper

1:20

Chuck diameter

250mm

Main motor power

7.5 kw

Turret maximum stroke

X:320 ; Z:760mm

Fast-moving feed

X:6000  Z:8000mm/min

Positioning accuracy

X:0.01  Z:0.015mm

Dia. of tailstock quill

75mm

Tailstock quill stroke

180mm

Taper of tailstrock quill

MT5

Repeat positioning accuracy

0.008mm

Section of turning tool

25x25mm

Size(LxWxH)

2650x1600x1700mm

Net weight

3200kg

Standard configuration:

1) System:GSK928, servo motor and drive.

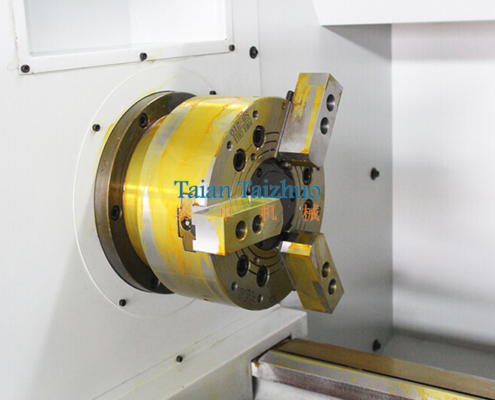

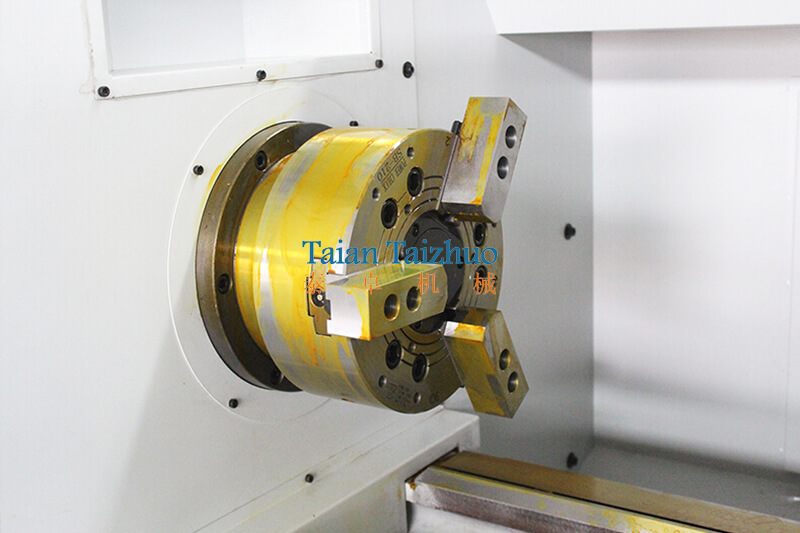

2) 3-jaw manual chuck.

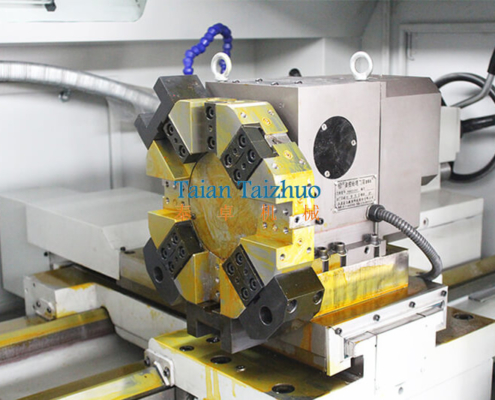

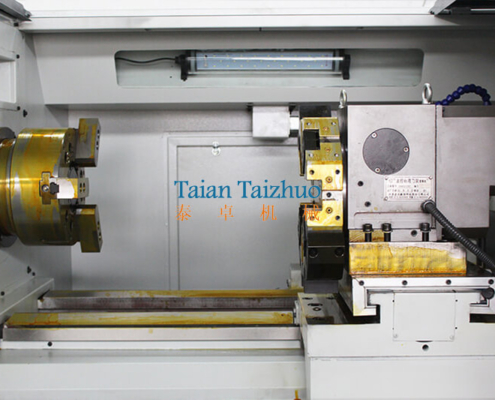

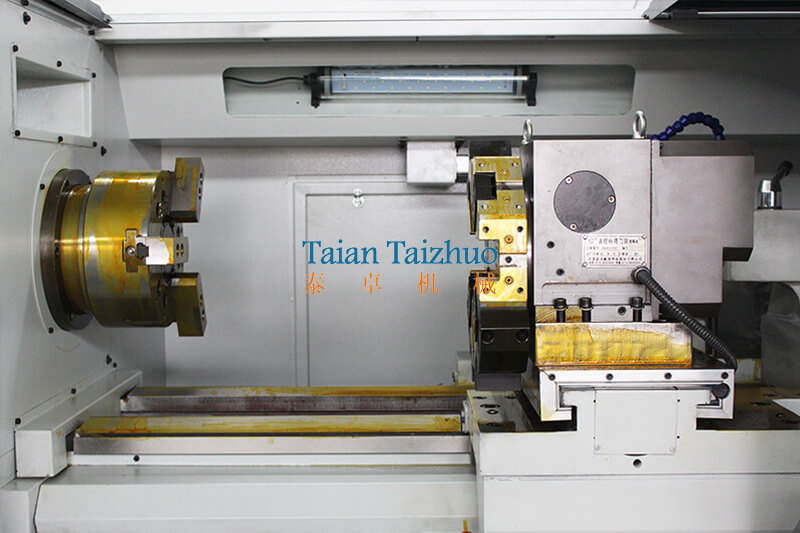

3) Four station electric tool post.

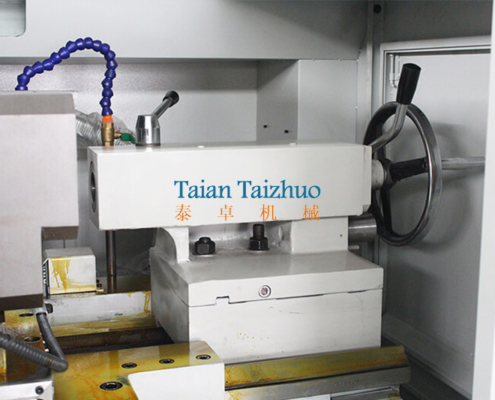

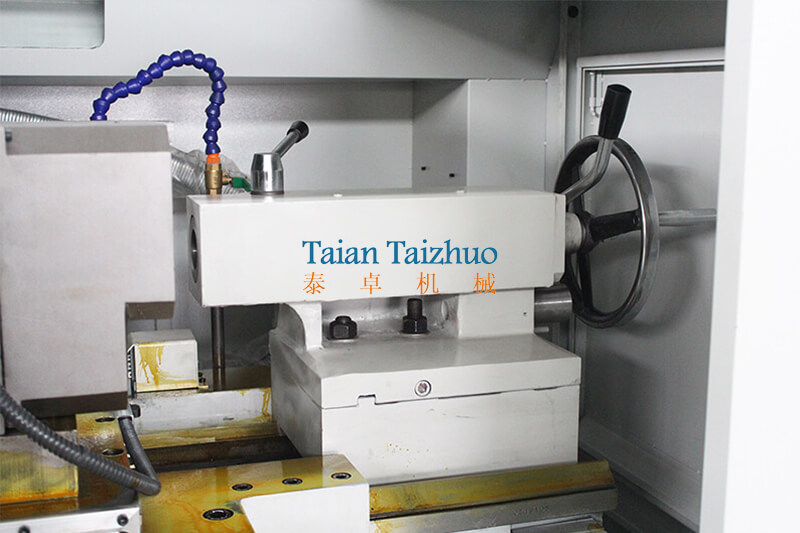

4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.

Optional configuration:

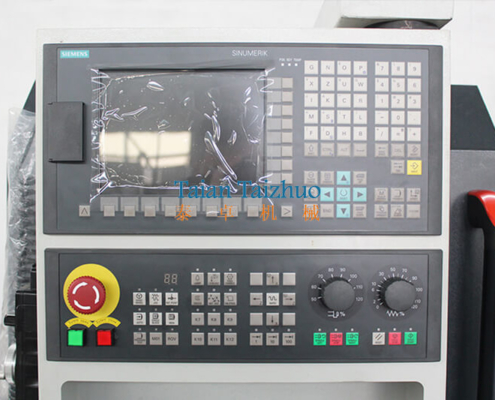

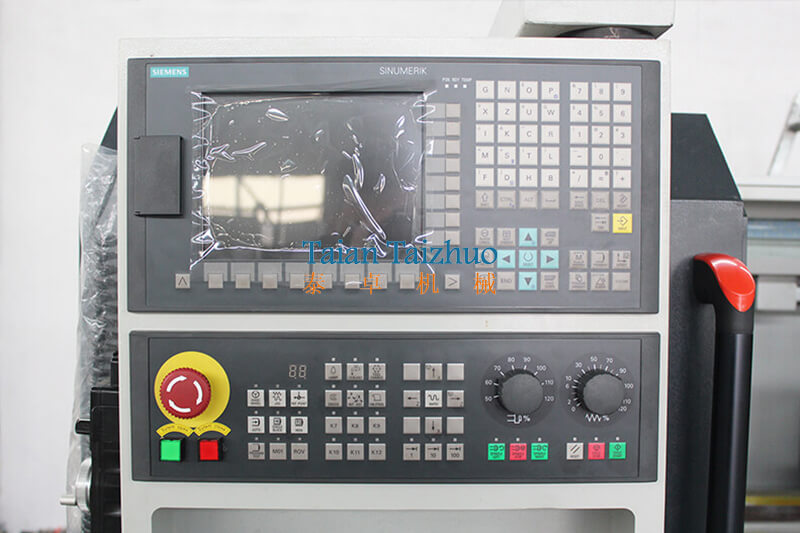

1). CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2). Hydraulic chuck, Pneumatic chuck .
3). Hydraulic tailstock, Pneumatic tailstock.

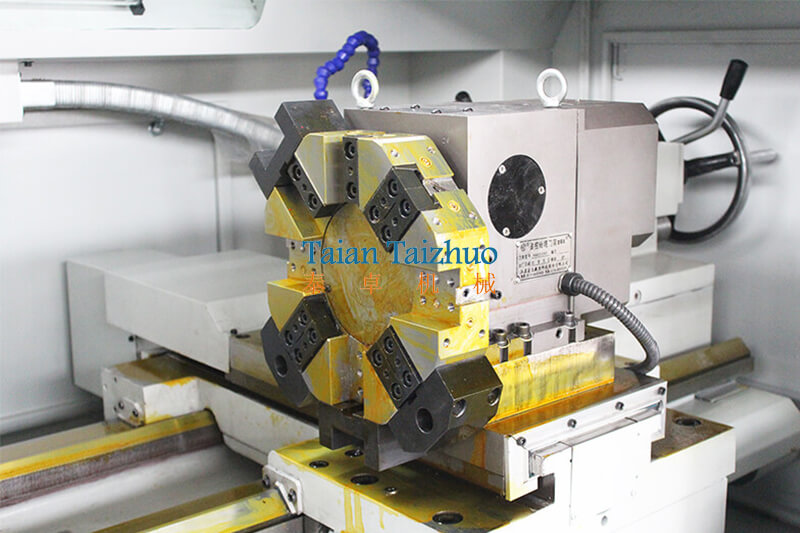

4). 6/8-station electric turret, Hydraulic turret.
5). Automatic bar feeder, Chip conveyor.
6). Gearbox.
7). Max. processing length: 750/1000/1500/2000mm.
