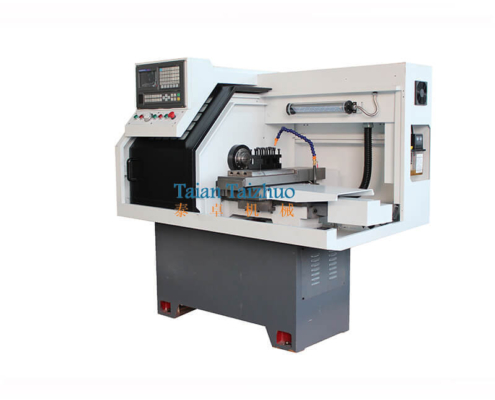

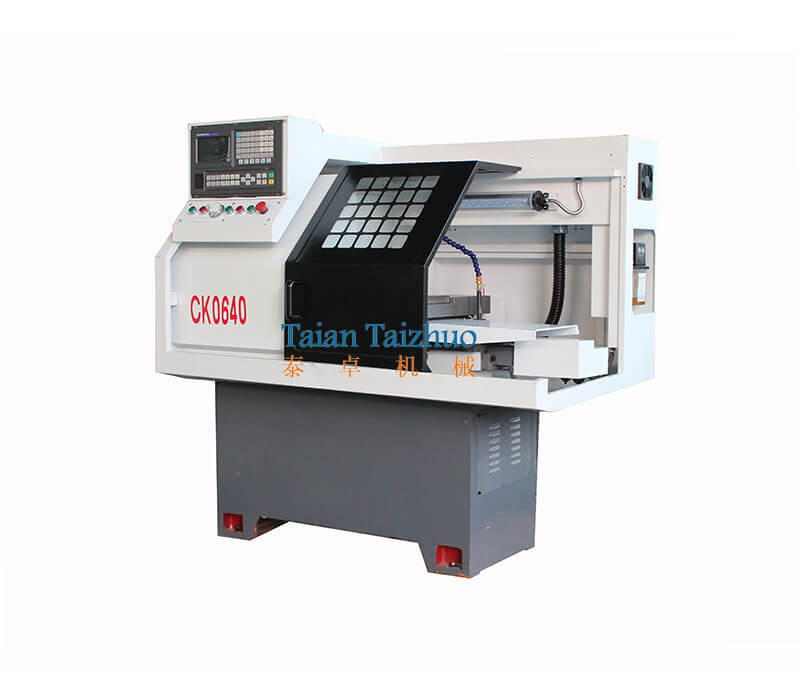

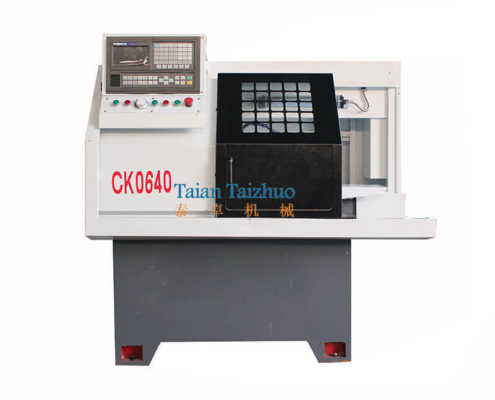

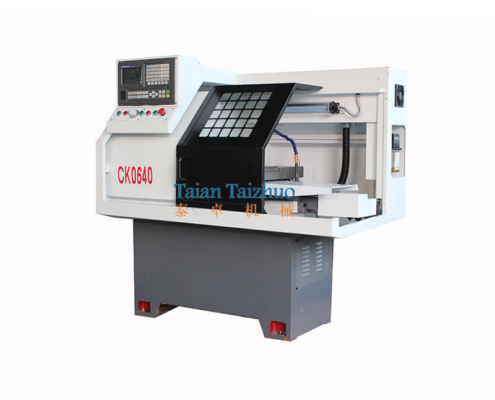

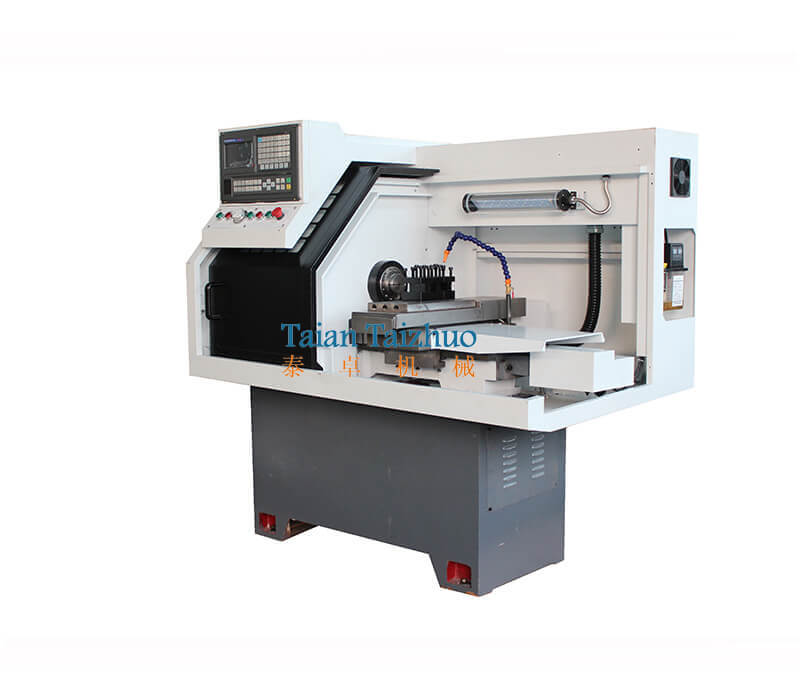

CK0640 Flat Bed CNC Lathe Machine China Suppliers

CNC Lathe Machine Datasheet

Item	CK0640
Drawn pipe diameter	40mm
Max. swing diameter over slide	100mm
Max. workpiece length	Collet 200mm/Chuck120mm
Spindle head form	A2-5
Spindle bore	48mm
Max. rotation diameter over bed	250mm
Lathe bed width	260mm
X/Z repeat positioning accuracy	0.012/0.013mm
X/Z maximum stroke	260/240mm
X/Z fast-moving feed	4000/8000 mm/min
Spindle speed range	150-2500 r/min
Main motor power	3 kw
Overall dimensions（LxWxH）	1600x1000x1550 mm
Net weight	950 kg

Standard configuration:

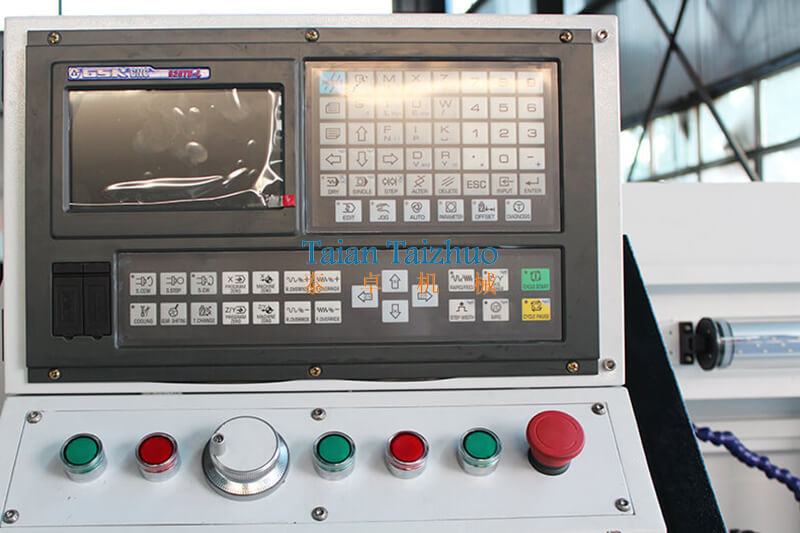

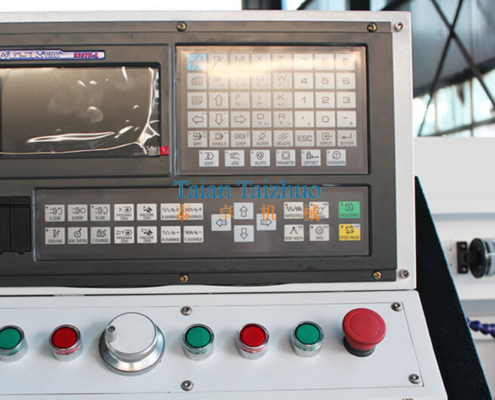

1) System:GSK928TD-L, servo motor and drive.

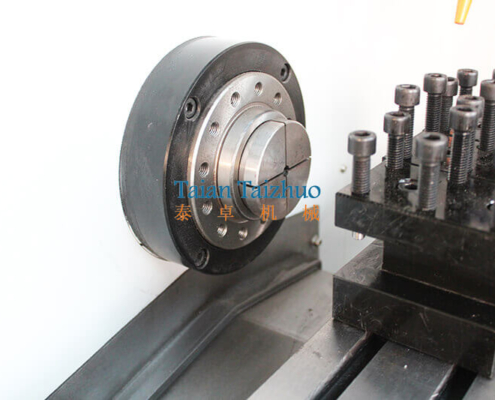

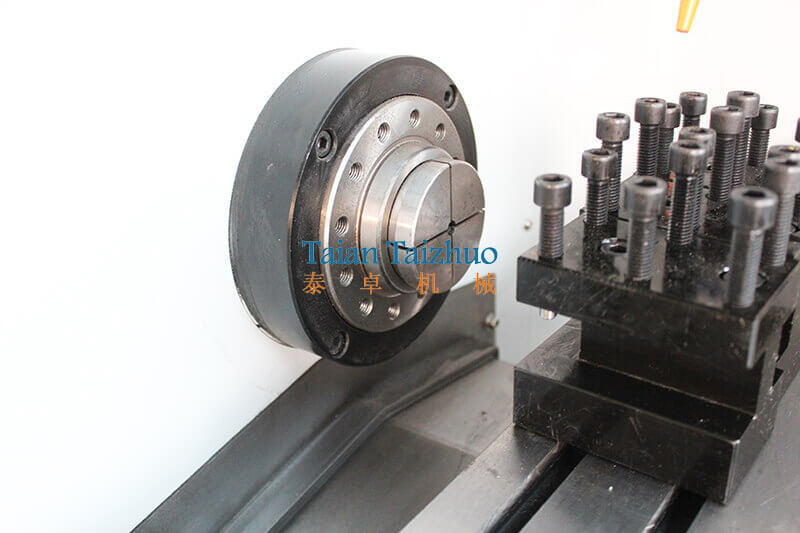

2) Pneumatic collet.

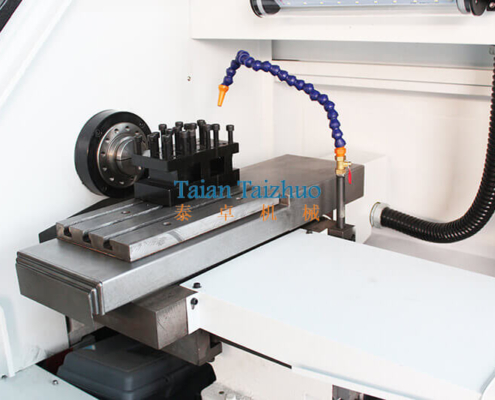

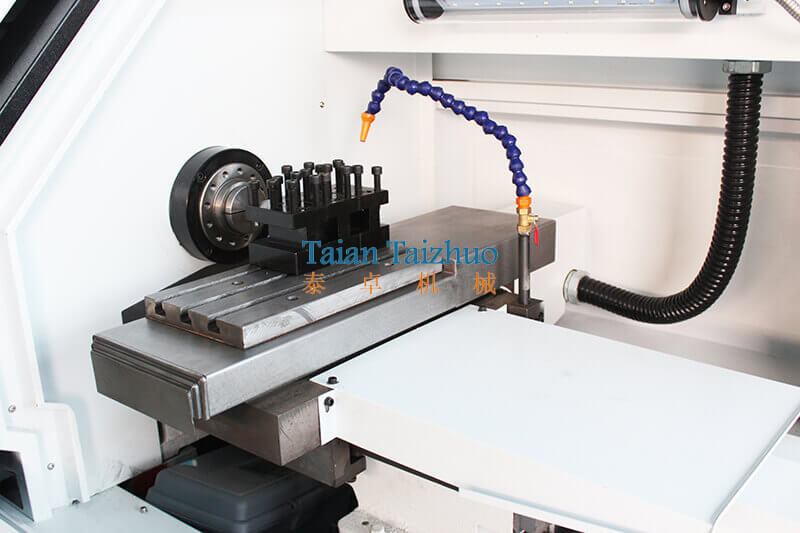

3) Gang type tool post.
4) Cooling system.
5) Lighten system.
6) Automatic lubrication system.

Optional configuration:

1) CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2) Hydraulic chuck, Pneumatic chuck .
3) Hydraulic tailstock, Pneumatic tailstock.
4) 4/6-station electric turret.
5) Automatic bar feeder, Chip conveyor.
6) Spindle bore: 48/70/90mm.
