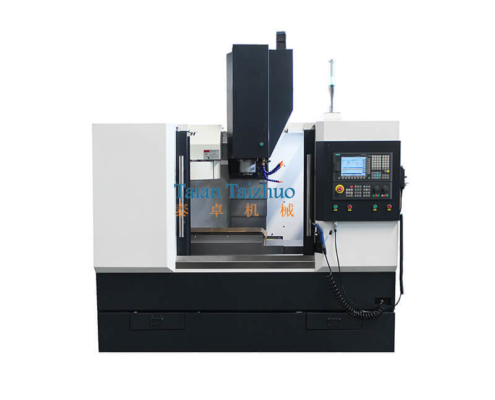

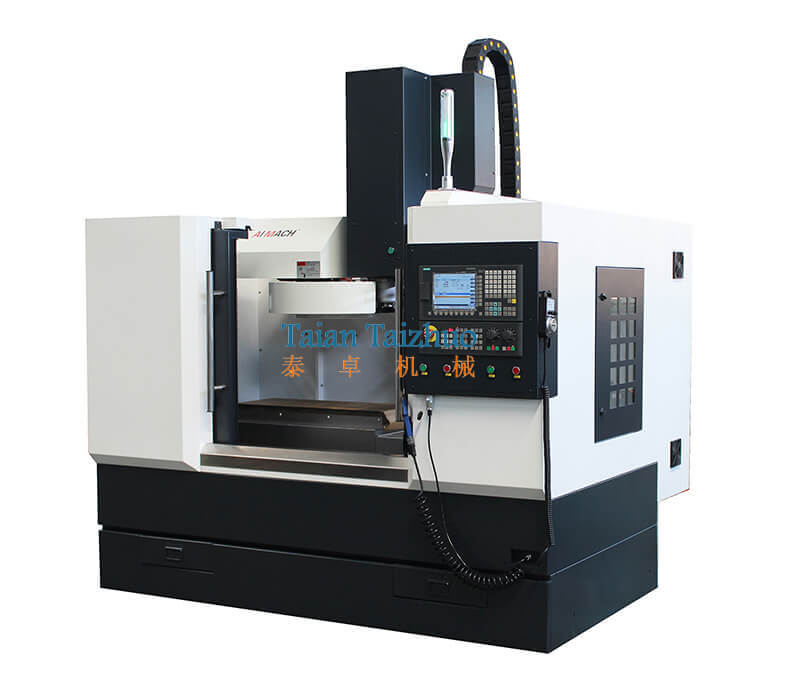

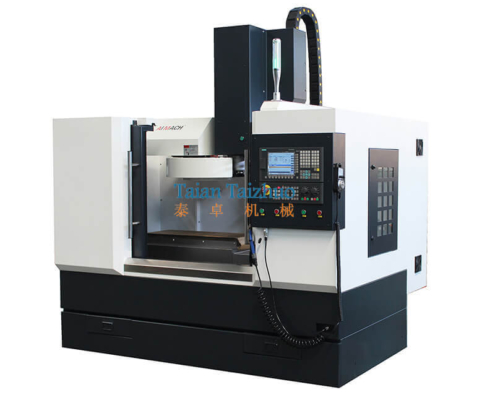

VMC500 CNC Machining Center China Suppliers
CNC Machining Center Datasheet
Travel |
X axis |
550mm |
|
|
Y axis |
300mm |
|
|
Z axis |
450mm |
|
|
Spindle nose to table |
90-540mm |
|
|
Spindle nose to column |
340mm |
Feed |
Max. X rapid feed |
18m/min |
|
|
Max. Y rapid feed |
18m/min |
|
|
Max. Z rapid feed |
18m/min |
|
|
Cutting feed |
1-6000mm/min |
|
|
Torque |
6/6/10N.m |

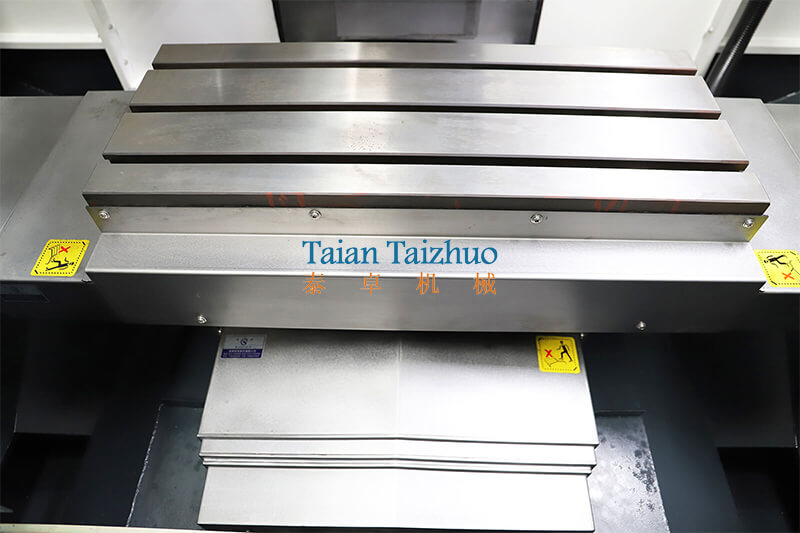

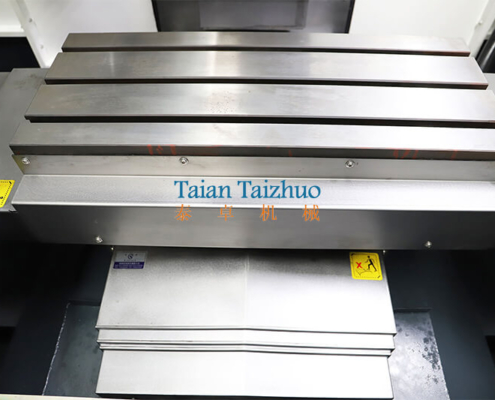

Table |
Table size |
800x260mm |
|
|
Max. load |
300kg |
|
|
T slot |
3-14-80mm |

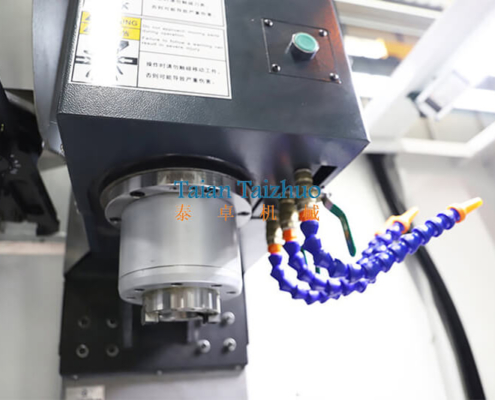

Spindle |
Type |
Belt |
|
|
Speed |
50-8000rpm |
|
|
Spindle bore |
120mm |
|
|
Spindle taper |
BT40 |
|
|
Pull stud |
MAS403-40BT-1 |
|
|
Spindle motor synchronizing wheel |
Taiwan |
|
|
Spindle belt |
Taiwan |
|
|
Main motor |
3.7/5.5kw |
Acuracy |
Positioning Accuracy (JIS) |
±0.015/300mm |
|
|
Repeatibility (JIS) |
±0.0075mm |
Machine |
Size |
2000x1800x2300mm |
|
|
Weight |
2400kg |
Standard configuration:
1. KND1000 CNC Controller.

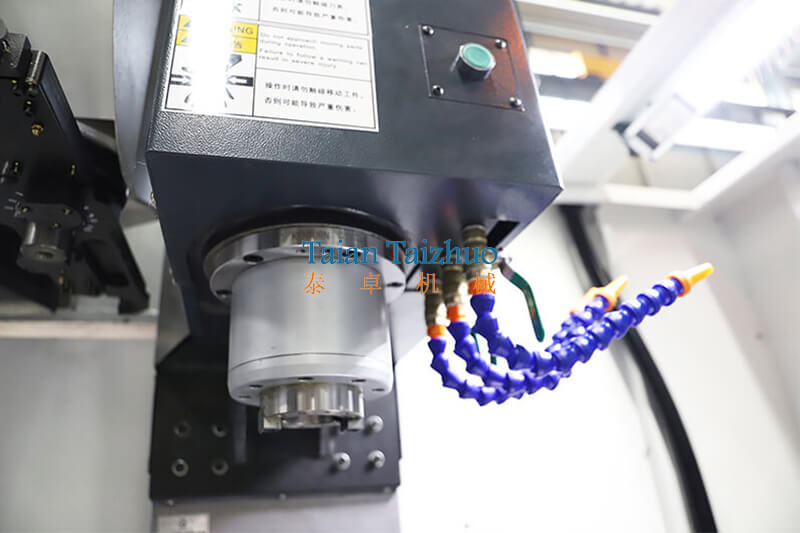

2. Taiwan BT40-120-8000 spindle.

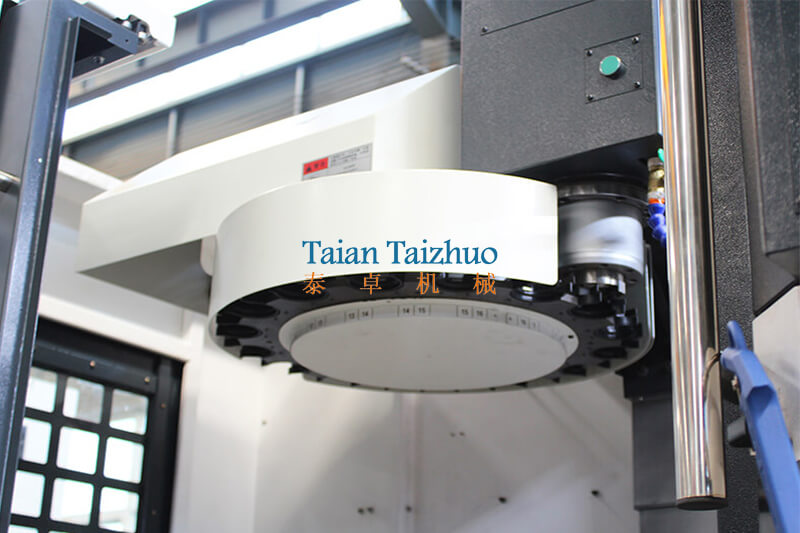

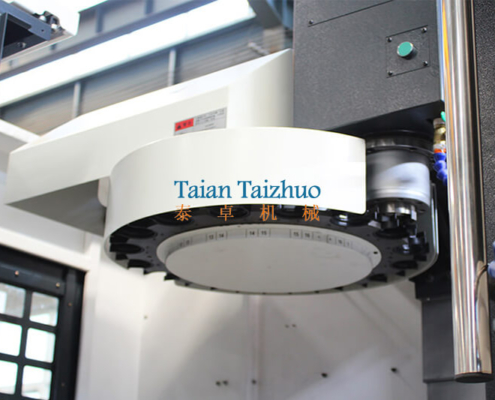

3. Funnel Type Tool Changer.
4. Automatic Central Lubrication System.
5. Work Lamp.
6. High precision ball screw.
7. Taiwan Hiwin linear guideway.
8. Full Enclosure Machine Guard.
Optional Configurations:

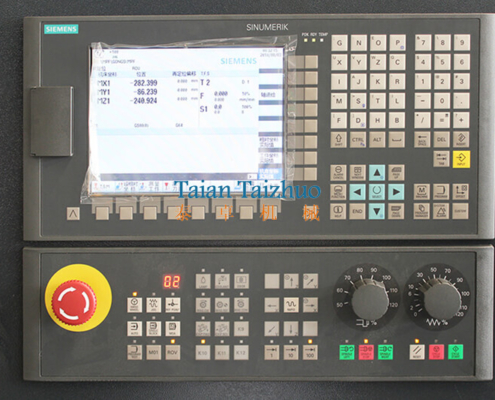

1. GSK KND Siemens Fanuc Mitusbishi GUNT.
2. Arm type ATC.
3. Automatic chip conveyor.
4. 4th axis and 5th axis.
5. Spindle oil coolant, Center to water.
6. Renishaw probe for workpiece and tool.
