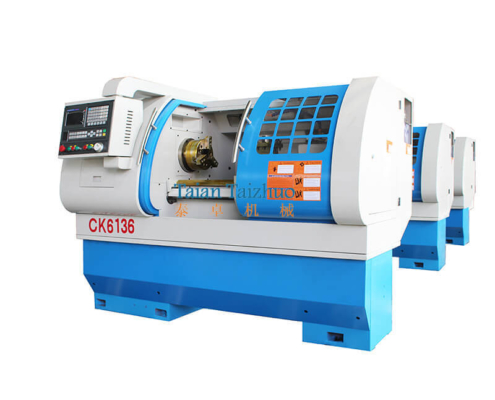

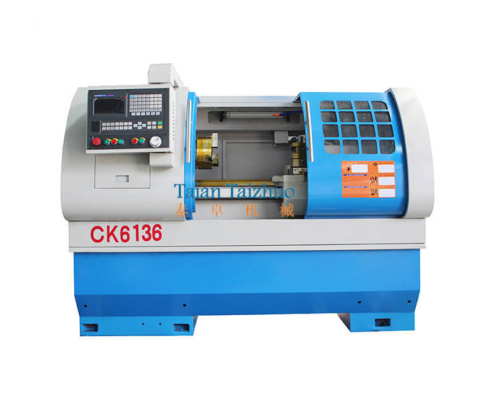

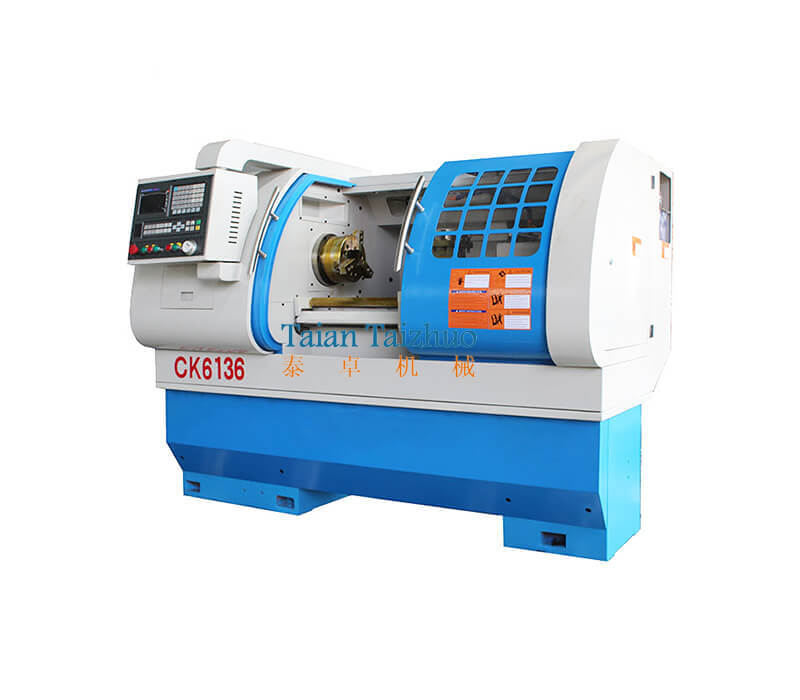

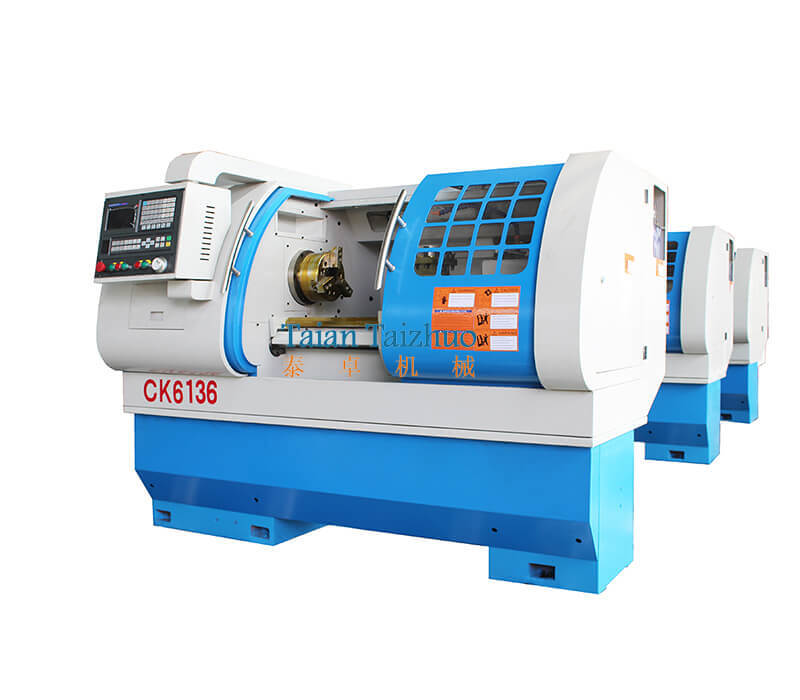

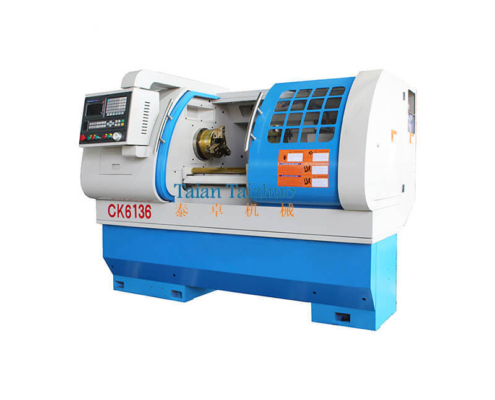

CK6136 Flat Bed CNC Lathe Machine China Suppliers

CNC Lathe Machine Datasheet

Item

CK6136

Max. rotation diameter over bed

360mm

Max. rotation diameter over pallet

190mm

Max. workpiece length

750mm

Main transmission form

Independent spindle

Spindle speed mode

Frequency stepless speed

Spindle speed range

200-2500 r/min

Spindle head form

6-A2

Spindle bore

60mm

Spindle hole outside taper

MT6

Chuck diameter

200mm

Main motor power

5.5 kw

Turret maximum stroke

X:260  Z:760mm

Fast-moving feed

X:6000 Z:8000mm/min

Positioning accuracy

X:0.01 Z:0.015mm

Dia. of tailstock quill

60mm

Tailstock quill stroke

120mm

Taper of tailstrock quill

MT4

Repeat positioning accuracy

0.008mm

Section of turning tool

20x20mm

Size(LxWxH)

2120x1400x1700mm

Net weight

1800kg

Standard configuration:

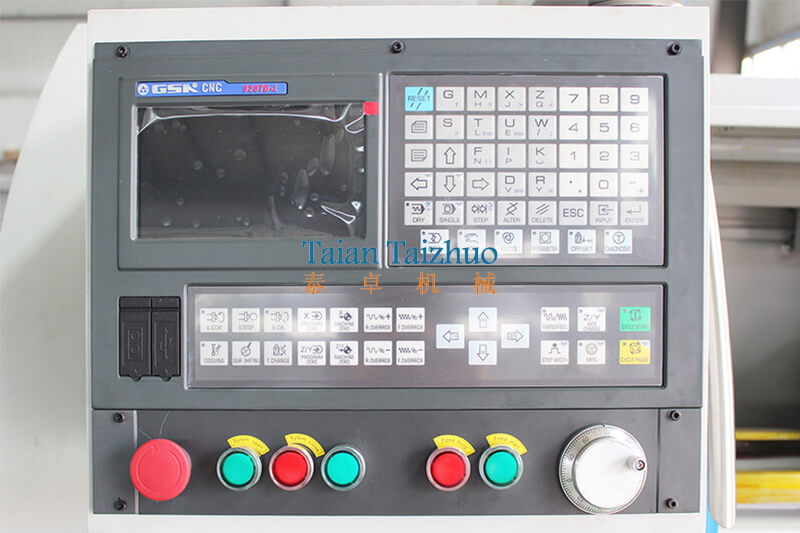

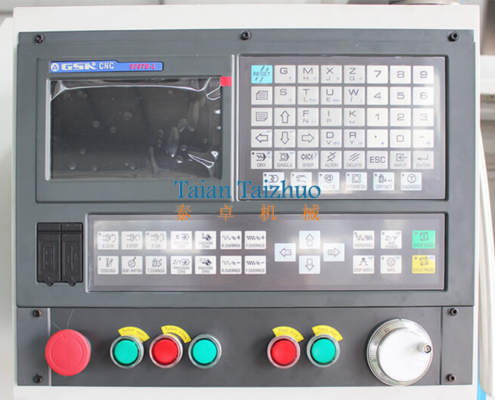

1) System:GSK928TD-L, servo motor and drive.

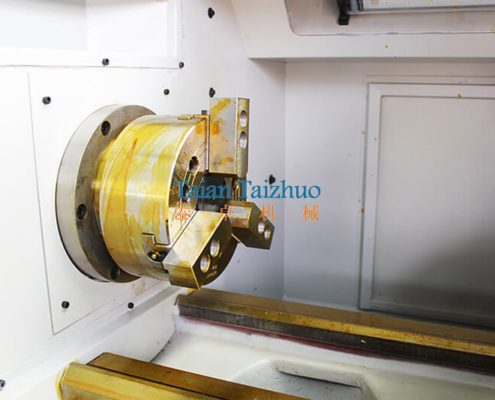

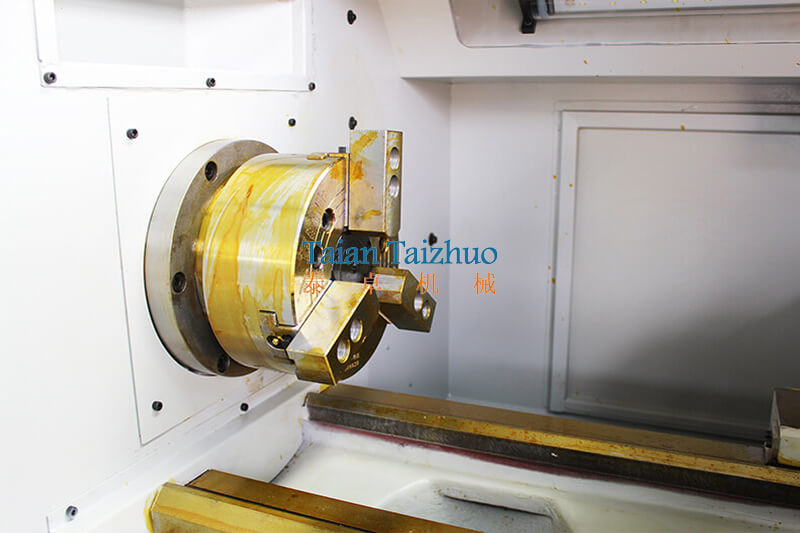

2) 3-jaw manual chuck.

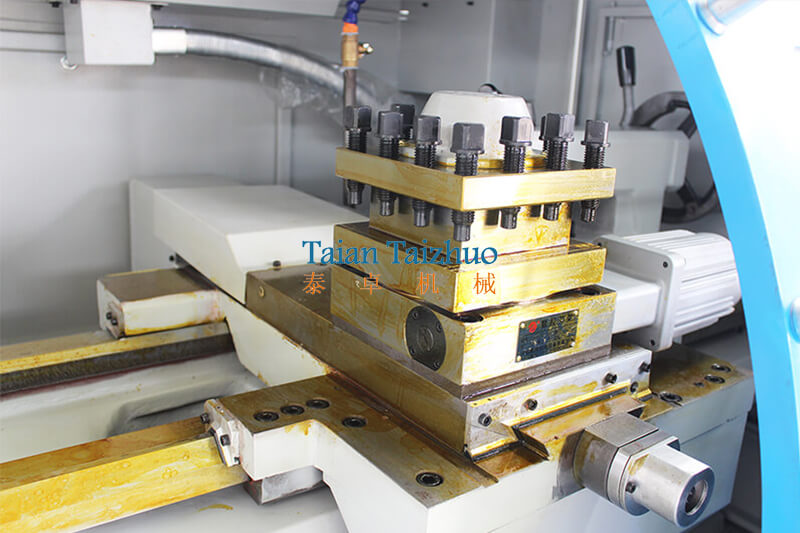

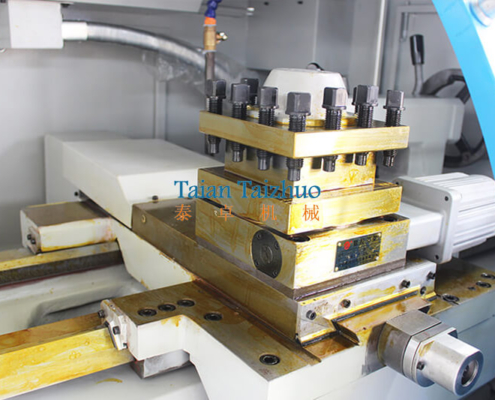

3) Four station electric tool post.
4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.

Optional configuration:

1) CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2) Hydraulic chuck, Pneumatic chuck .
3) Hydraulic tailstock, Pneumatic tailstock.
4) 6/8-station electric turret, Hydraulic turret.
5) Automatic bar feeder, Chip conveyor.
6) Max. processing length:750/1000/1500mm.
