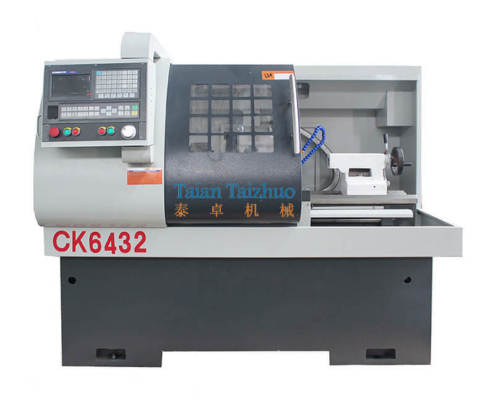

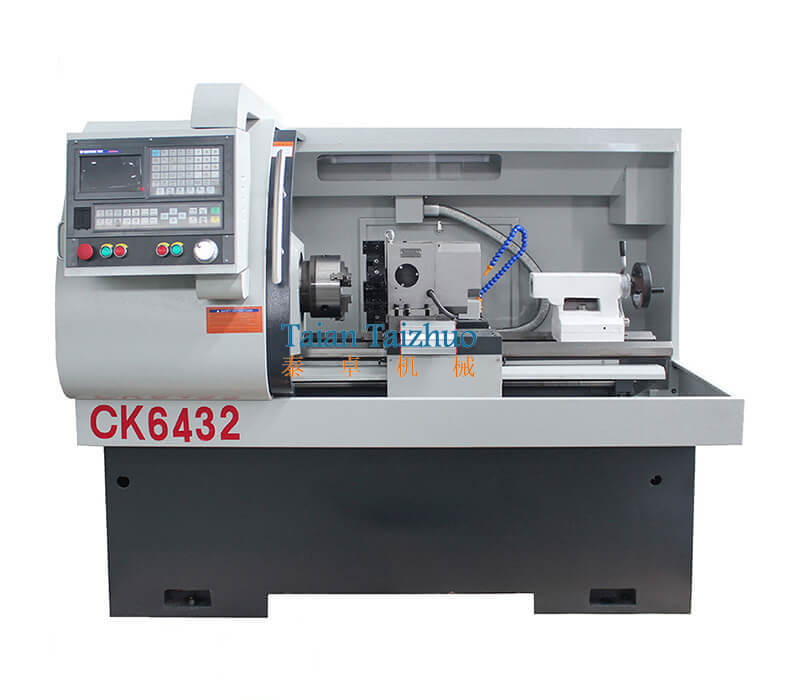

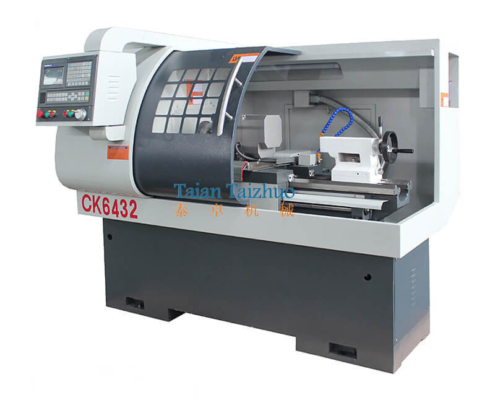

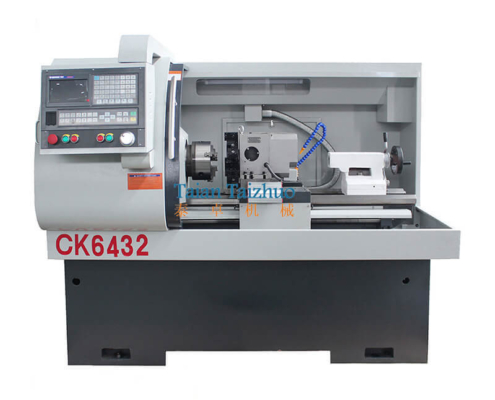

CK6432 Flat Bed CNC Lathe Machine China Suppliers

CNC Lathe Machine Datasheet

Item

CK6432

Max. rotation diameter over bed

360mm

Max. rotation diameter over pallet

150mm

Max. workpiece length

450mm

Main transmission form

Independent spindle

Spindle speed mode

Frequency stepless speed

Spindle speed range

100-2500 r/min

Spindle bore

60mm

Spindle hole bore taper

MT6

Chuck diameter

200mm

Main motor power

4 kw

Turret maximum stroke

X:260  Z:450mm

Fast-moving feed

X:6000 Z:8000mm/min

Positioning accuracy

X:0.01 Z:0.015mm

Positioning accuracy

IT6-IT7

Workpiece accuracy

Ra1.6

Dia. of tailstock quill

60mm

Tailstock quill stroke

100mm

Taper of tailstrock quill

MT4

Repeat positioning accuracy

0.008mm

Section of turning tool

20x20mm

Size(LxWxH)

1815x1165x1750mm

Net weight

1450kg

Standard configuration:

1) System:GSK928, servo motor and drive.

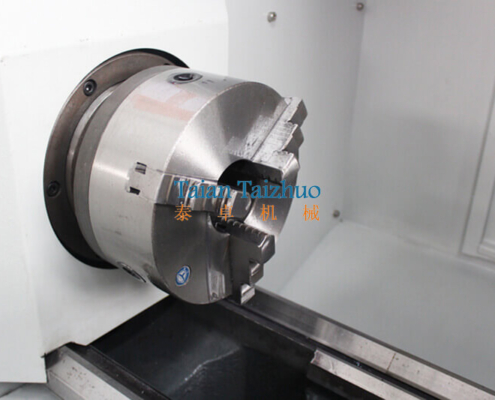

2) 3-jaw manual chuck.

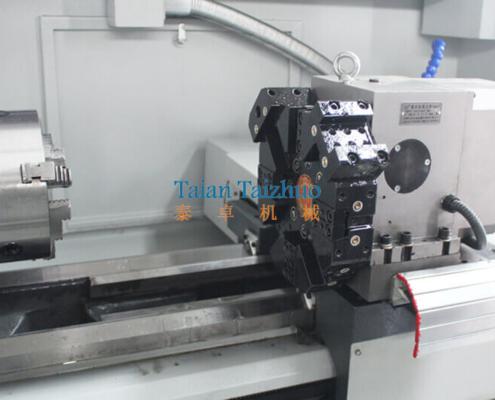

3) Four station electric tool post.

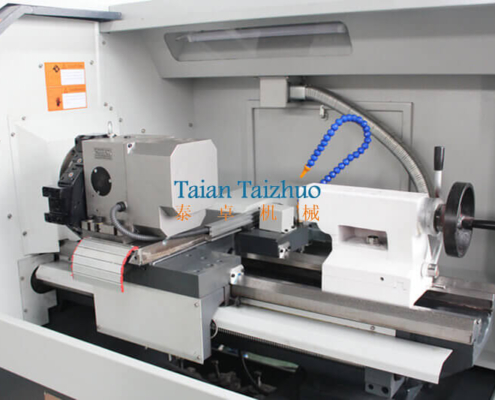

4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.

Optional configuration:

1) CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2) Hydraulic chuck, Pneumatic chuck .
3) Hydraulic tailstock, Pneumatic tailstock.
4) 6/8-station electric turret, Hydraulic turret.
5) Automatic bar feeder, Chip conveyor.
6) Max. processing length:450/700mm.
