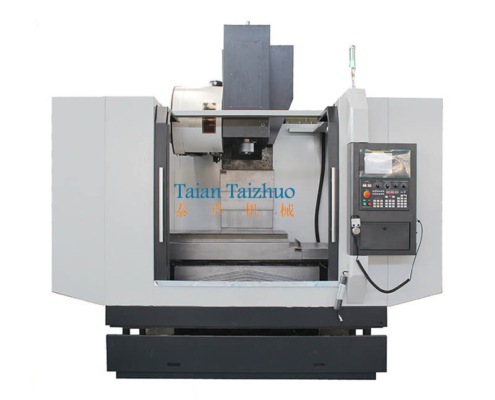

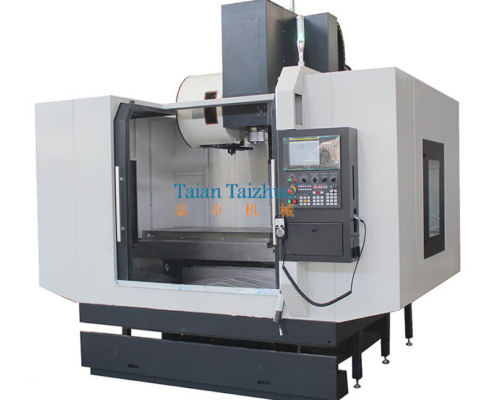

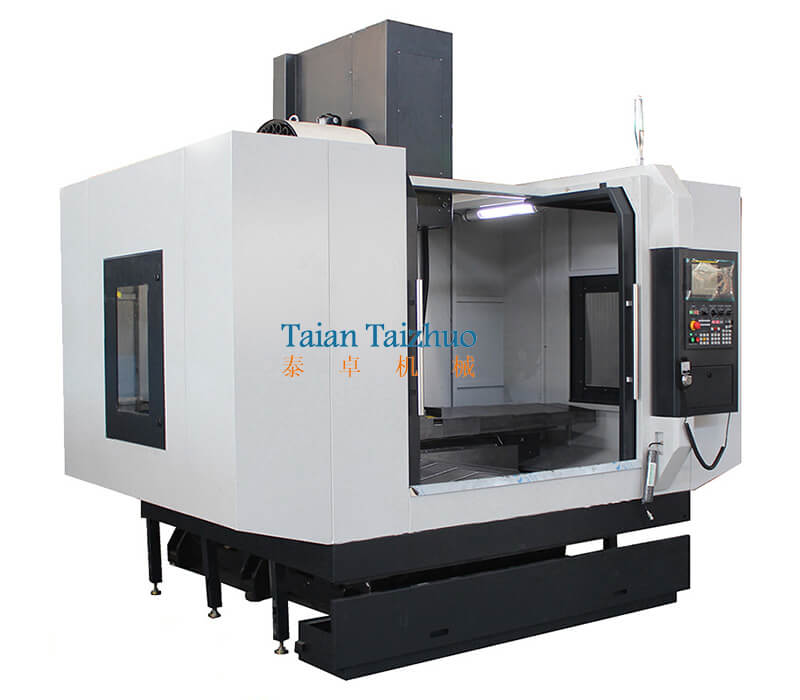

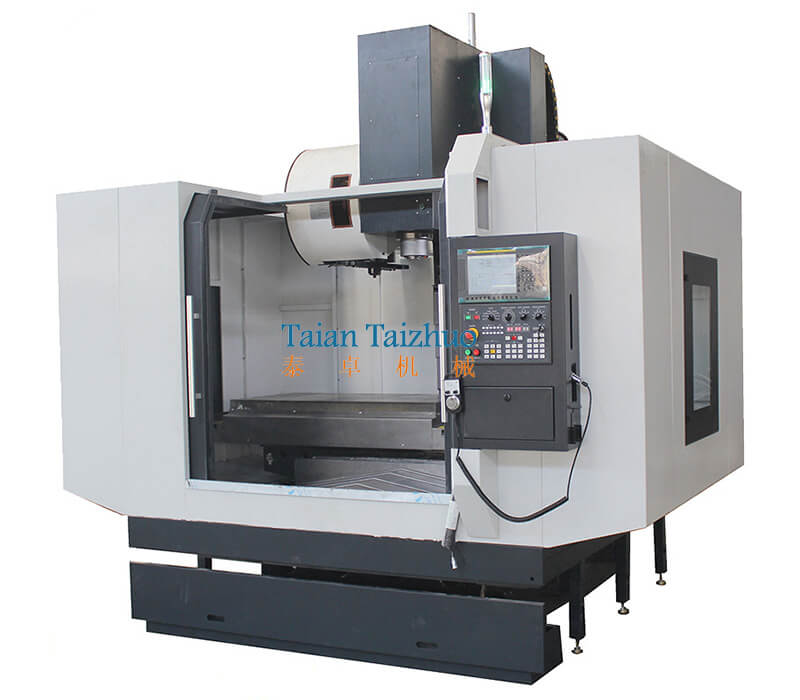

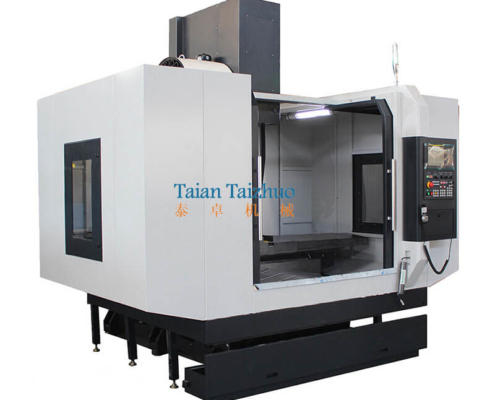

VMC1270 CNC Machining Center China Suppliers
CNC Machining Center Datasheet
Item |
VMC1270 |
|
Travel |
X axis |
1200mm |
Y axis |
700mm |
|
Z axis |
700mm |
|
Spindle nose to table |
150-850mm |
|
Spindle nose to column |
780mm |
|
Feed |
Max. X rapid feed |
24m/min |
Max. Y rapid feed |
24m/min |
|
Max. Z rapid feed |
18m/min |
|
Cutting feed |
1-10000mm/min |
|
Torque |
23/23/23N.m |
|

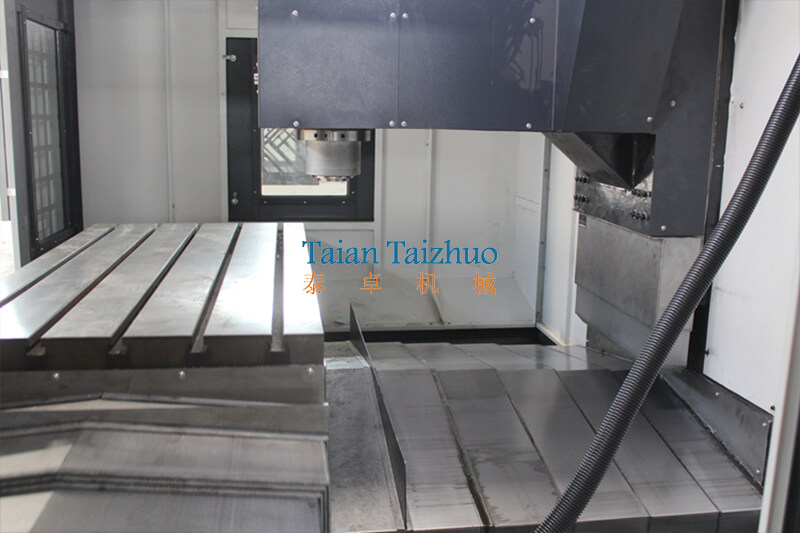

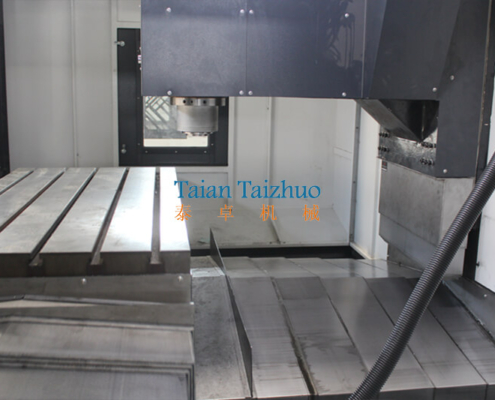

Table |
Table size |
1400x700mm |
Max. load |
800kg |
|
T slot |
5-18-125mm |
|
Spindle |
Type |
Belt |
Speed |
50-8000rpm |
|
Spindle bore |
150mm |
|
Spindle taper |
BT40 |
|
Pull stud |
MAS403-40BT-1 |
|
Spindle motor synchronizing wheel |
Taiwan |
|
Spindle belt |
Taiwan |
|
Main motor |
15/18.5kw |
|
Acuracy |
Positioning Accuracy (JIS) |
±0.015/300mm |
Repeatibility (JIS) |
±0.0075mm |
|
Machine |
Size |
3400x3100x3000mm |
Weight |
8200kg |
|
Standard configuration:

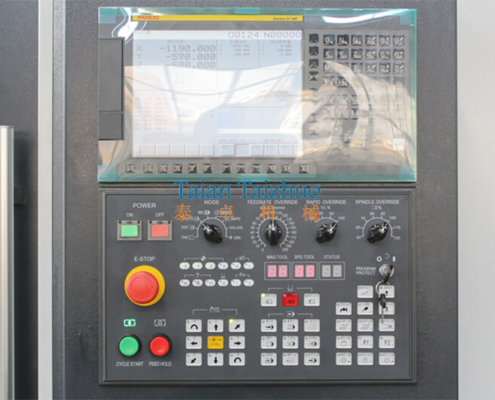

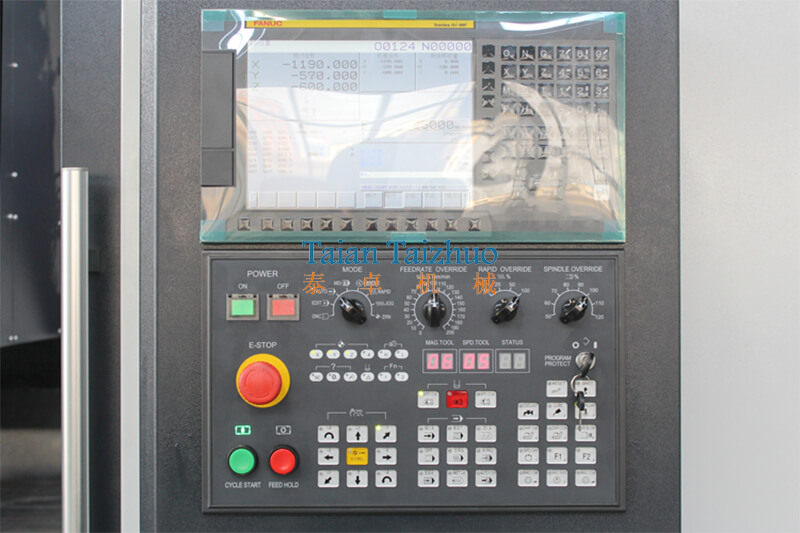

1. KND2000 cnc system.

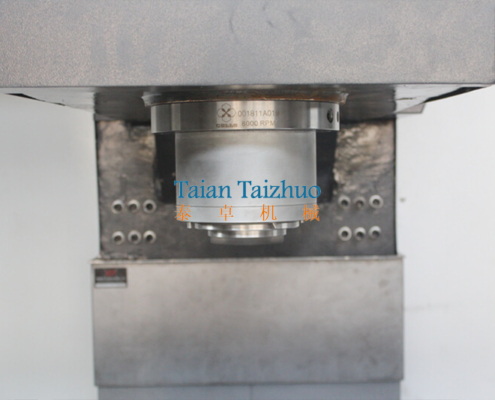

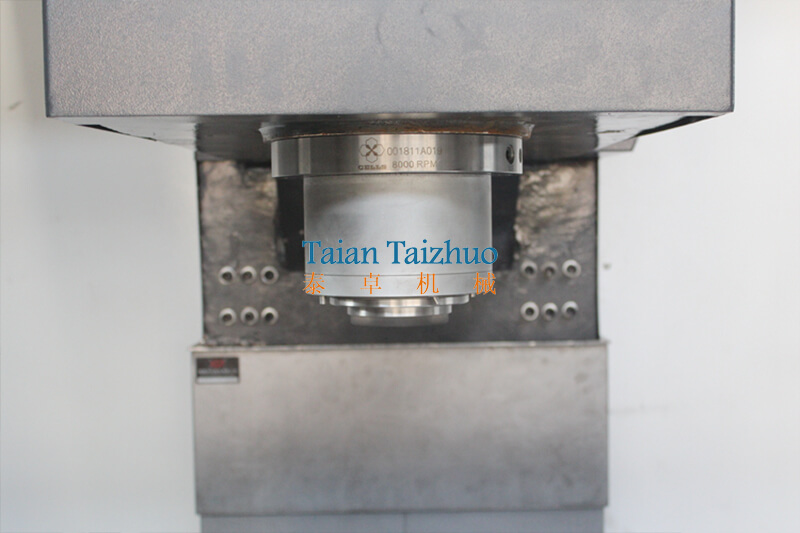

2. Taiwan BT40-150-8000 spindle.

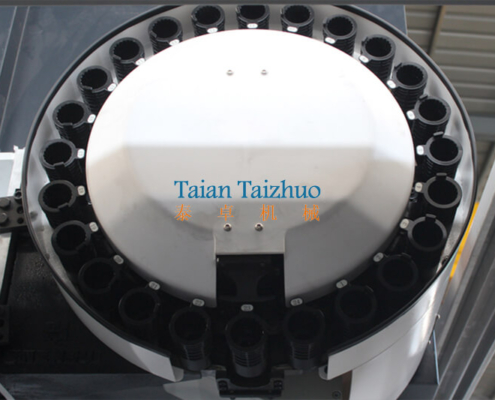

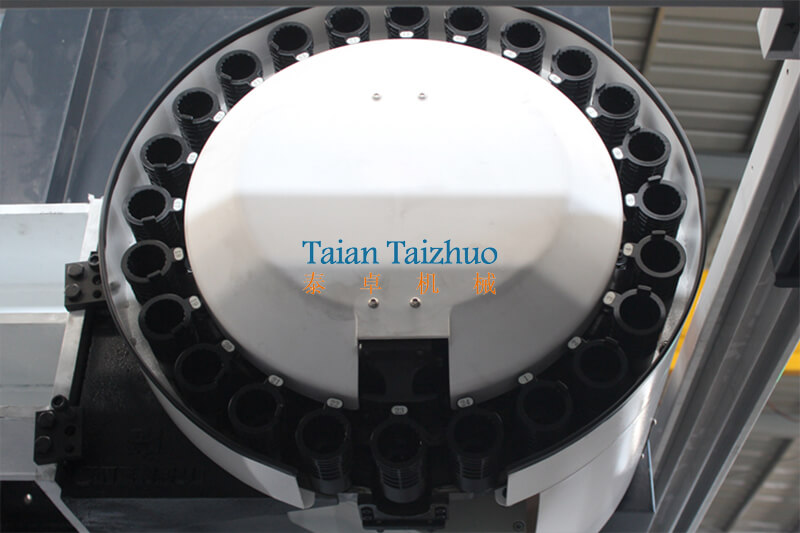

3. Taiwan 20T Funnel Type Tool Changer.
4. Taiwan Hiwin Ball Screw and Linear Guideway.
5. Auto Lubrication System.
6. Cooling System.
7. Work Lamp.
8. Full Enclosure Machine Guard.
Optional Configurations:
1. GSK KND Siemens Fanuc Mitusbishi GUNT.
2. Funnel type tool changer.
3. Automatic chip conveyor
4. 4th axis and 5th axis.
5. Spindle oil coolant, Center to water.
6. Renishaw probe for workpiece and tool.
