Q1322 Pipe Threading Lathe Machine China Suppliers

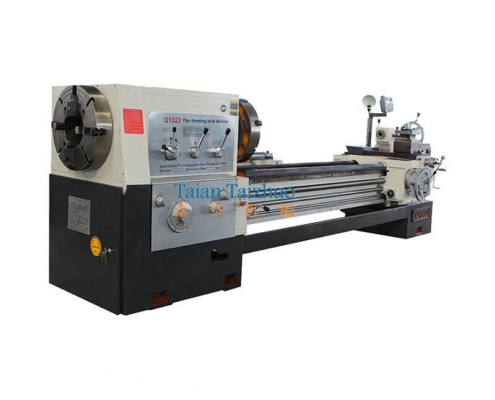

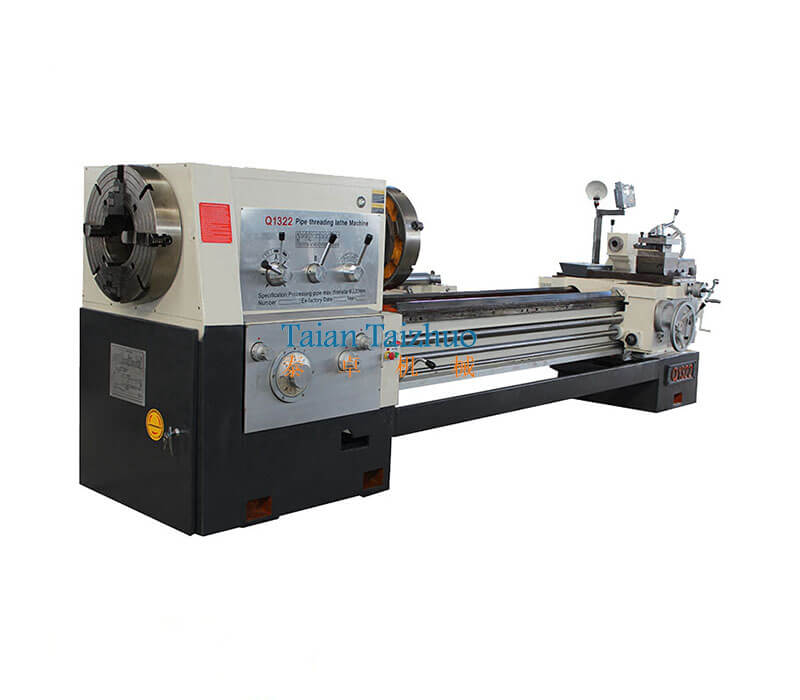

Pipe Threading Universal Lathe Machine Q1322 1
Pipe Threading Universal Lathe Machine Q1322 1

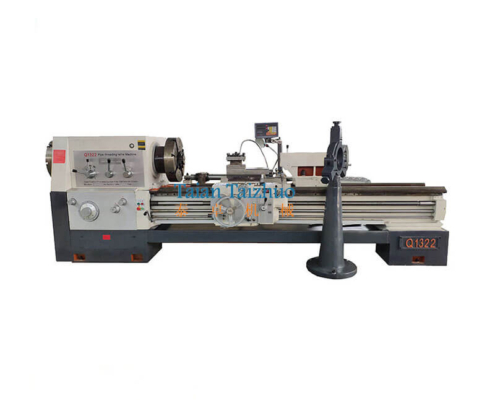

Pipe Threading Universal Lathe Machine Q1322 3
Pipe Threading Universal Lathe Machine Q1322 3

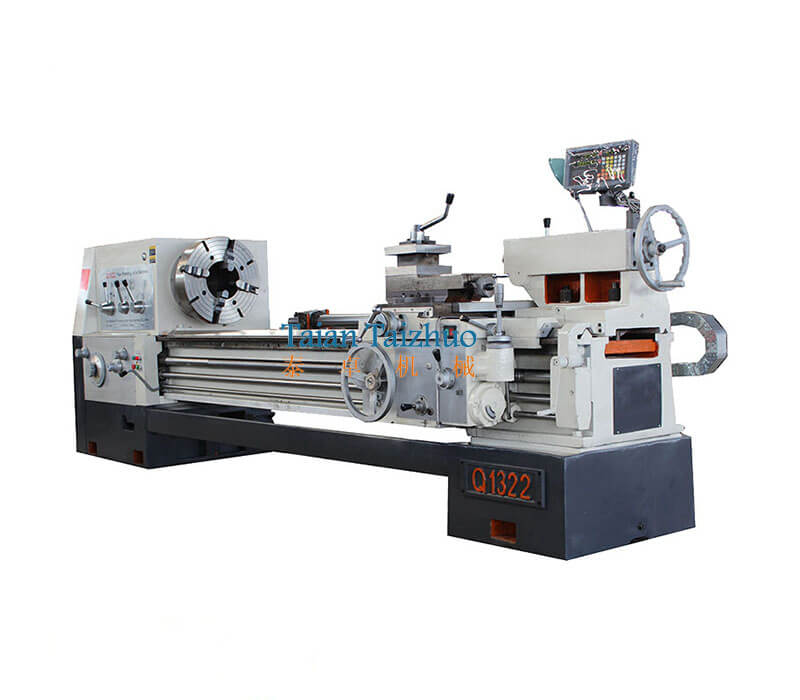

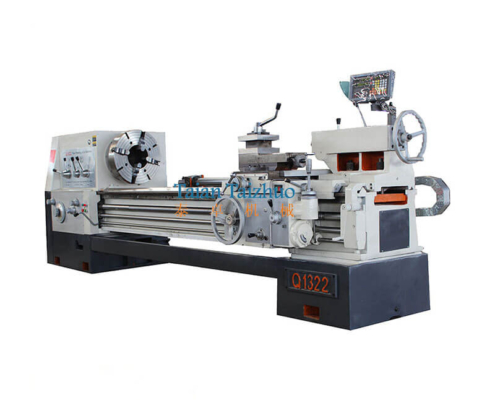

Pipe Threading Universal Lathe Machine Q1322 5
Pipe Threading Universal Lathe Machine Q1322 5

Pipe Threading Lathe Machine Datasheet

Item

Q1322

Machining maximum taper

1:4

Max. swing over bed

630mm

Machining pipe diameter range

50-219mm

Processing general shaft maximum length

1000-6000mm

Maximum stroke of taper bar

750mm

Number of spindle speeds

12

Spindle bore

225mm

Range of spindle speed

20-460r/min

Vertical and horizontal feed quantity species

ench 32

Machining the number of metric thread species

21

Processing the number of British thread

26

Process metric thread pitch

1-15mm

Inch thread pitch on processing

1-14t.p.i

The saddle moves rapidly in the longitudinal direction

2.5m/min

Maximum travel of turret

200mm

Section of turning tool

30x30mm

Dia. of tailstock quill

100mm

Taper of tailstock quill

MT5

Tailstock quill stroke

250mm

Horizontal stroke of the tailstock

±15mm

Taper of center

MT5

Machine size

3300x1450x1500mm

Net weight

5800kg

Standard Configuration:

1) Front and rear four-jaw manual chuck.
2) Vertical four-station manual turret.
3) With tailstock.
4) The rear bracket.
5) Automatic lubrication system.
6) Turning cooling system.

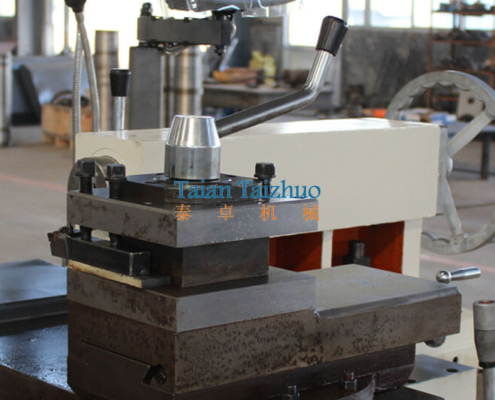

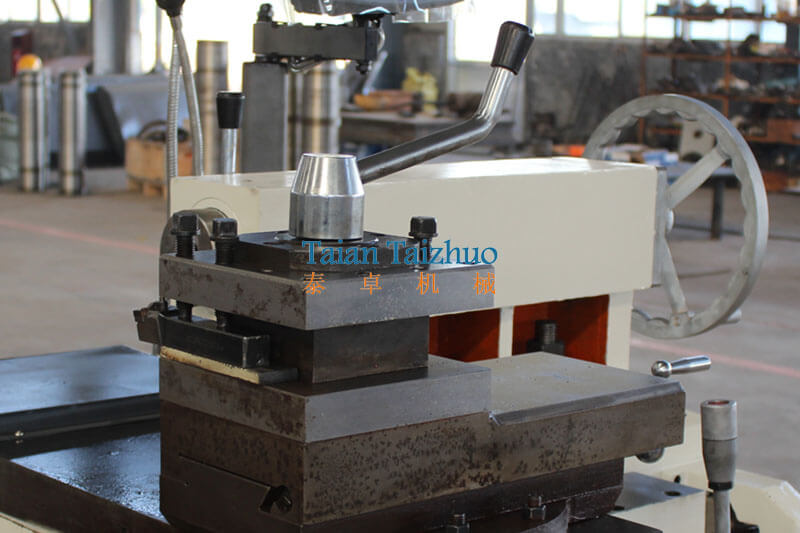

Pipe Threading Universal Lathe Machine Q1322 6
Pipe Threading Universal Lathe Machine Q1322 6

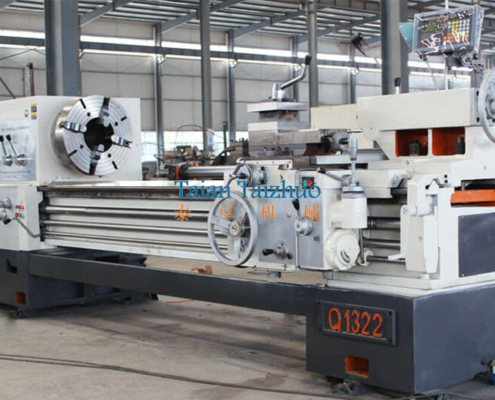

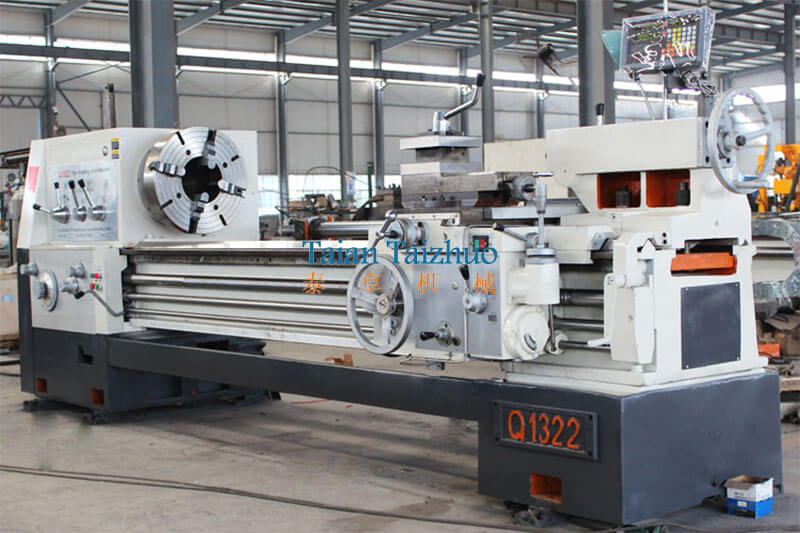

Pipe Threading Universal Lathe Machine Q1322 7
Pipe Threading Universal Lathe Machine Q1322 7

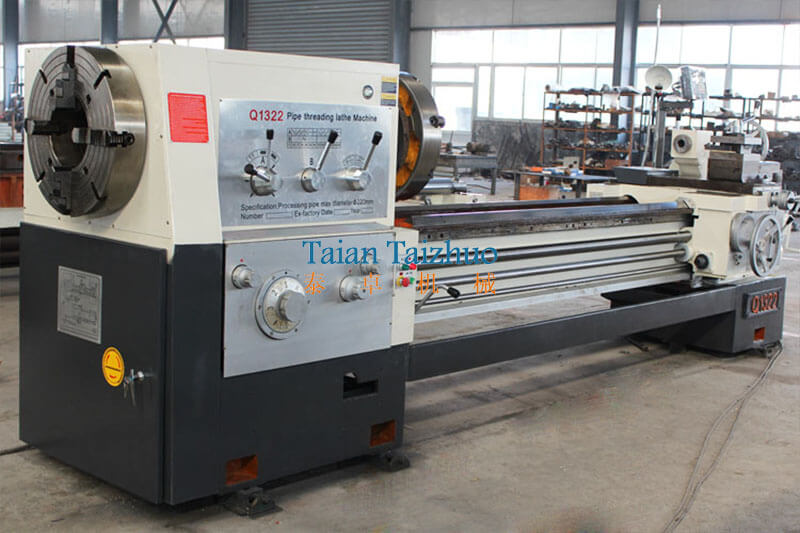

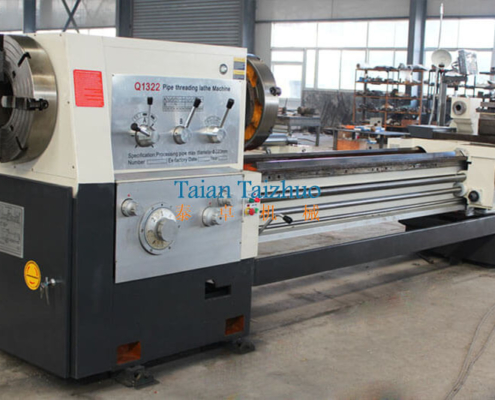

Pipe Threading Universal Lathe Machine Q1322 8
Pipe Threading Universal Lathe Machine Q1322 8
