CK350 Pipe Threading Lathe Machine China Suppliers

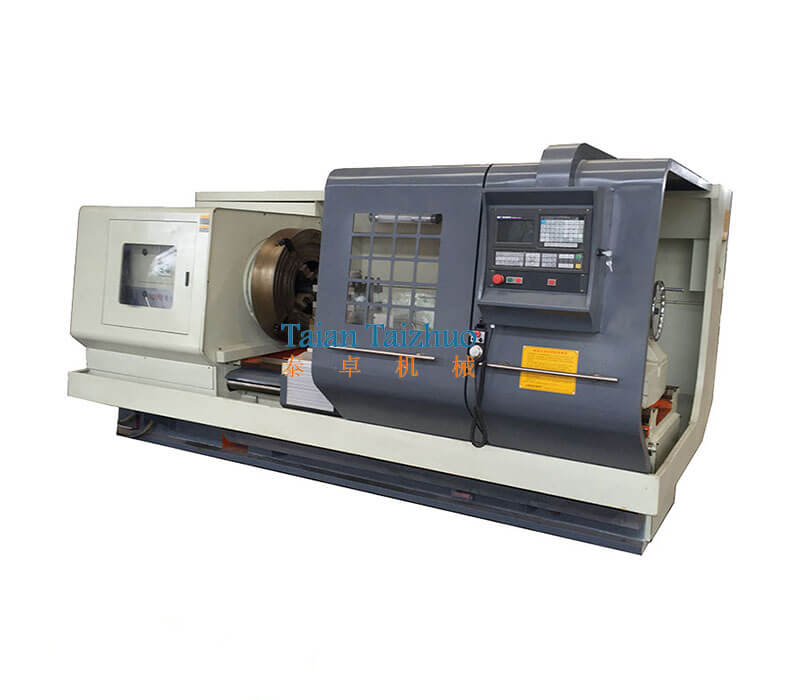

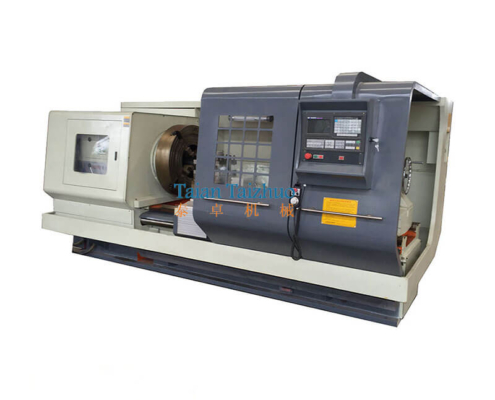

Pipe Threading CNC Lathe Machine CK350 (1)
Pipe Threading CNC Lathe Machine CK350 (1)

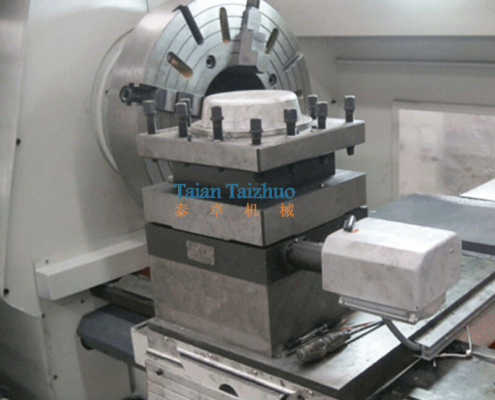

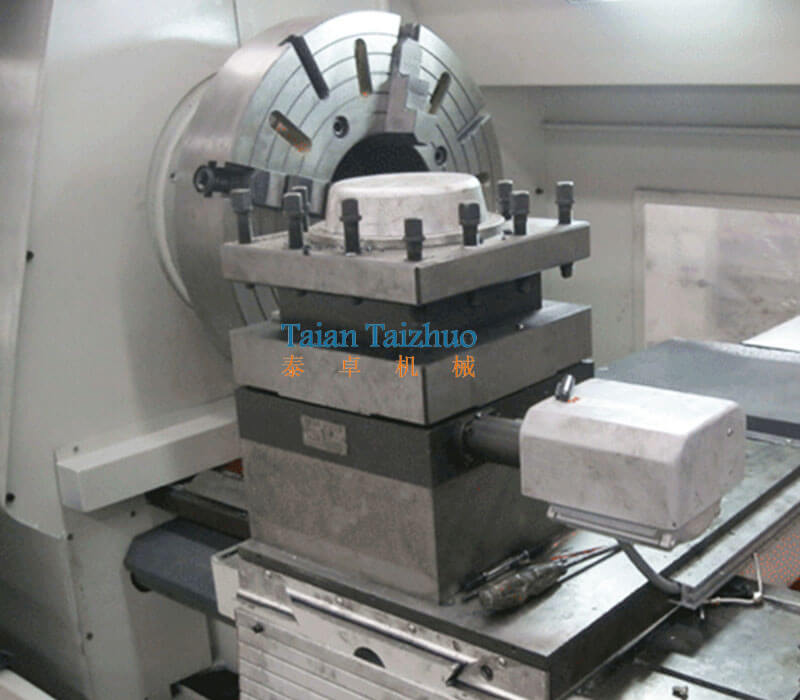

Pipe Threading CNC Lathe Machine CK350 (2)
Pipe Threading CNC Lathe Machine CK350 (2)

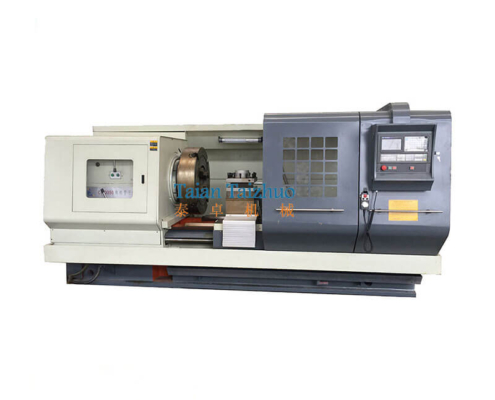

Pipe Threading CNC Lathe Machine CK350 (3)
Pipe Threading CNC Lathe Machine CK350 (3)

Slant Bed CNC Turning Center Datasheet

Item

CK350

Max. swing over bed

1000mm

Max. turning length

1000mm

Machining pipe outside diameter range

114-350mm

Spindle through hole diameter

355mm

Number of spindle speeds

3 steps

Range of spindle speed

7.7-230r/min

Servo motor torque

15/22

Chuck form

4-jaw electric composite chuck

Tool post form

4-station tool post 280×280

Fast moving feed

3/5 m/min

Tailstock sleeve diameter

Φ100mm

Tailstock sleeve travel

250mm

Taper of top sleeve

MT6

Top taper

MT6

Height from center of spindle to guide rail

400mm

Main motor power

15kw

Net weight

9000kg

Machine size

4050x1900x1630mm

Standard Configuration:

1) CNC system: GSK980.
2) Front and rear four-jaw electric chuck.
3) Vertical four-station electric turret.
4) With tailstock.
5) The rear bracket.
6) Automatic lubrication system.
7) Turning cooling system.

Optional accessory:

1) CNC system :KND, Siemens, Fanuc.
2) Electric chuck, pneumatic chuck, hydraulic chuck.
3) Horizontal 6/8 station electric turret.
4) Chip Conveyor
5)Voltage:380V/220V/415V/480V 3phase
220V single

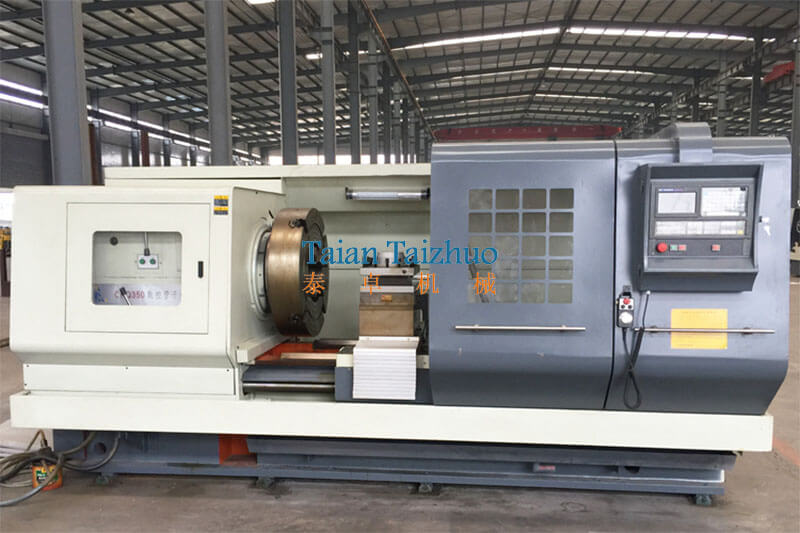

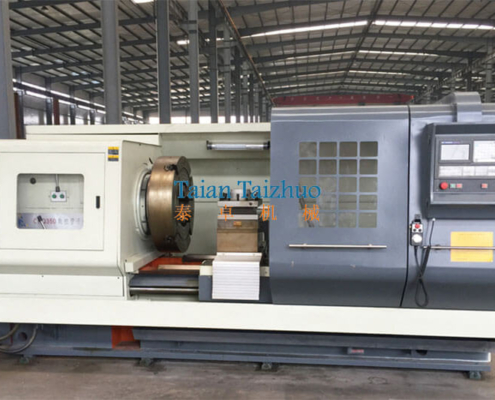

Pipe Threading CNC Lathe Machine CK350 (7)
Pipe Threading CNC Lathe Machine CK350 (7)

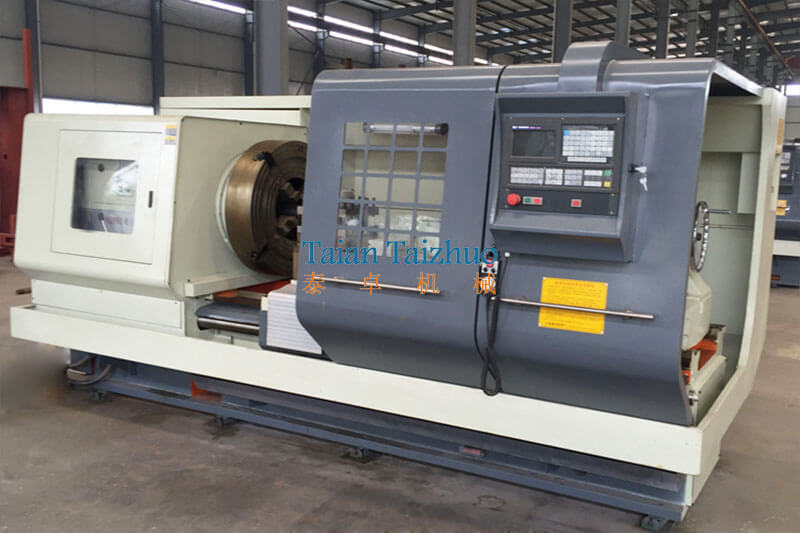

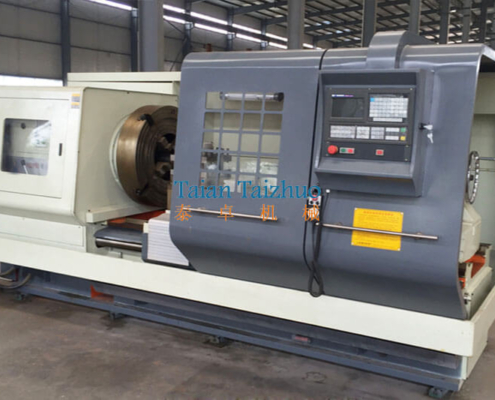

Pipe Threading CNC Lathe Machine CK350 (8)
