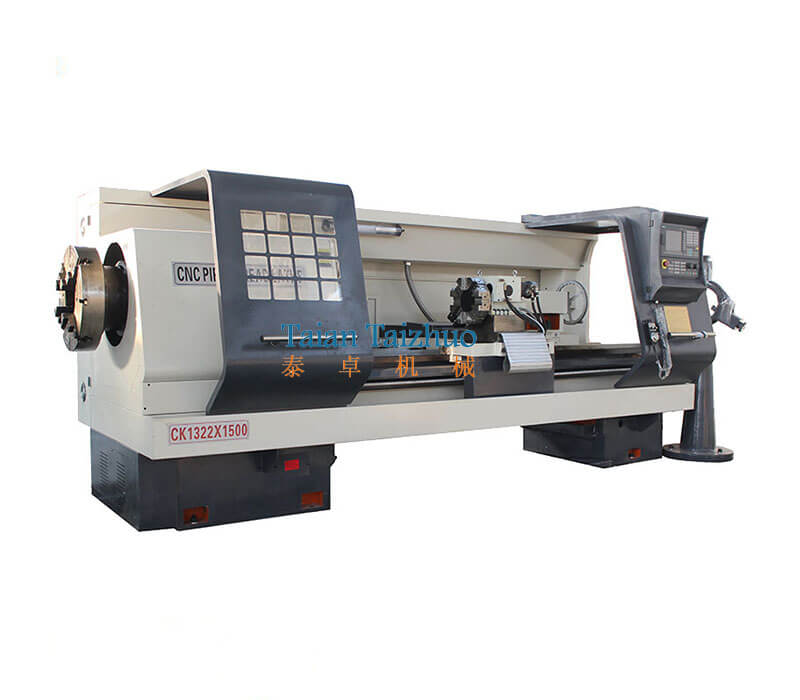

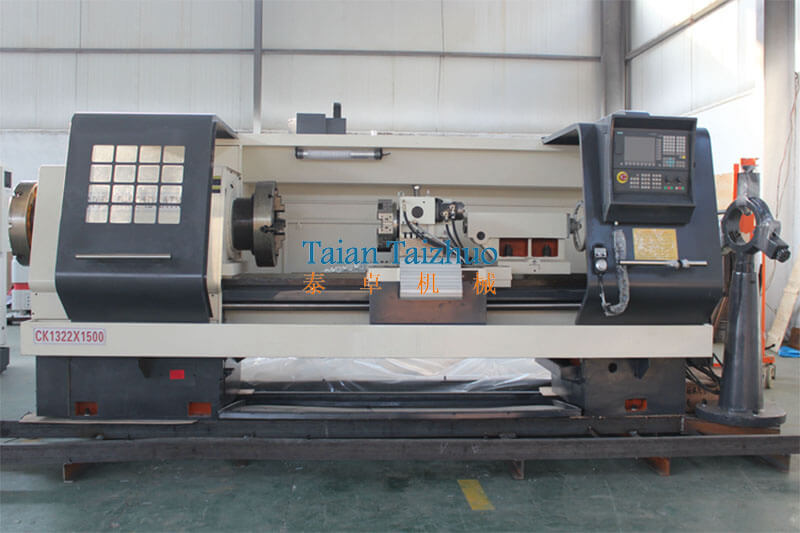

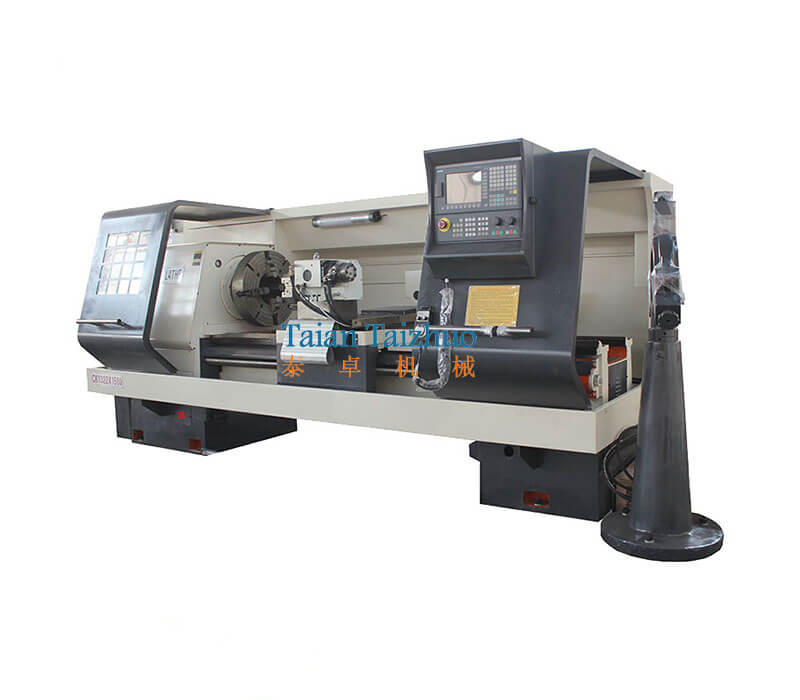

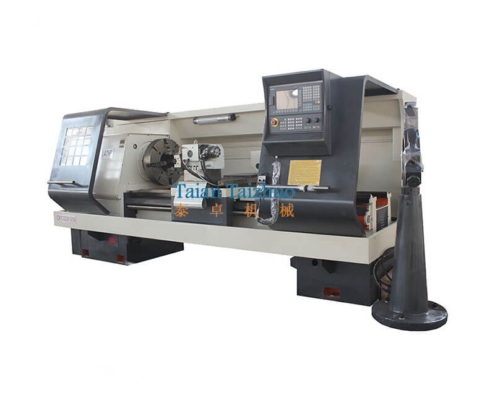

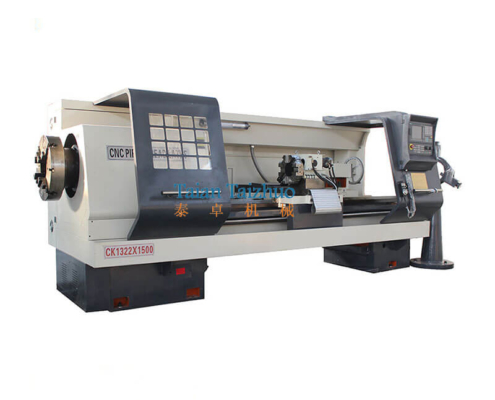

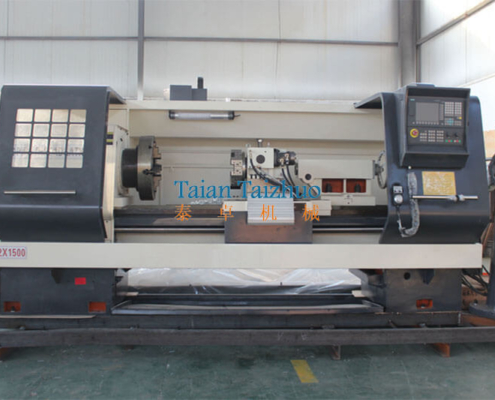

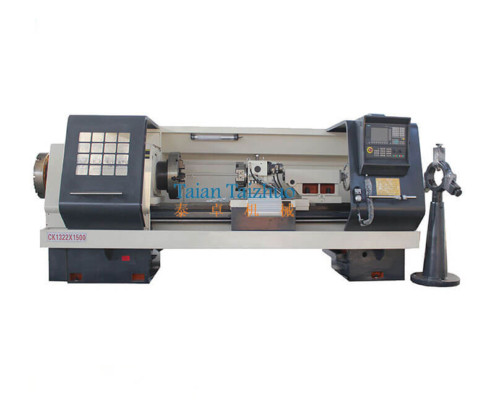

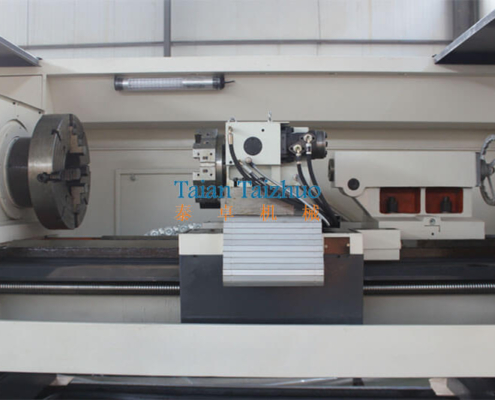

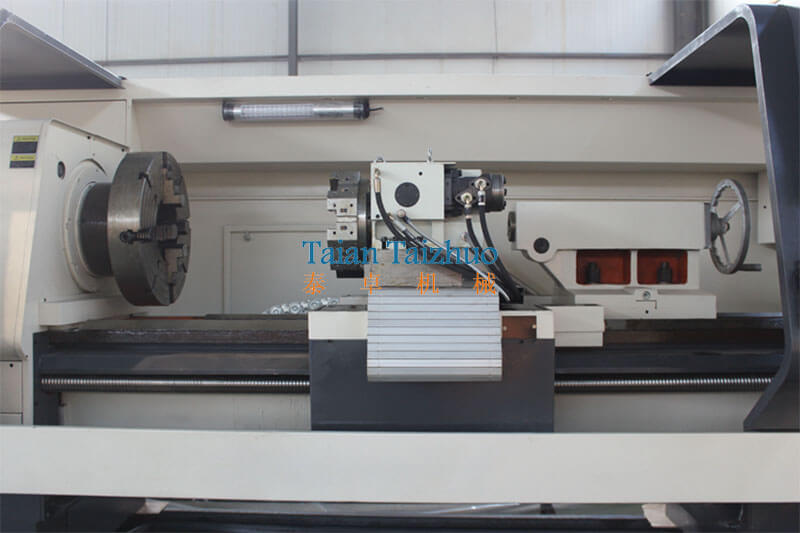

CK1322 Pipe Threading Lathe Machine China Suppliers

Pipe Threading Lathe Machine Datasheet

Item

CK1322

Distance between two thimbles

1000mm

Max. swing over bed

630mm

Spindle through hole diameter

225mm

Machining pipe outside diameter range

60-219mm

Guide width

600mm

Max. rotation diameter over pallet

350mm

Spindle servo speed

20-500r/min

Servo motor power/frequency

11kw/33.3Hz

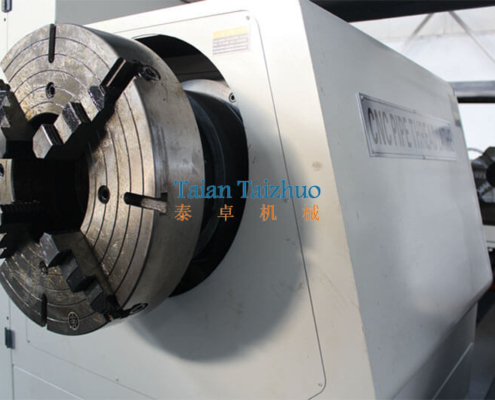

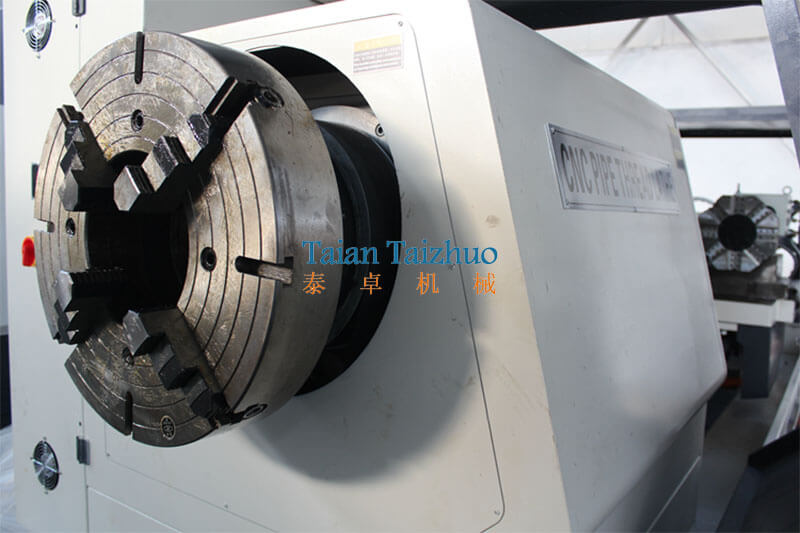

Chuck diameter/bore

Φ500/Φ225mm

Big hole three jaw chuck

K11-Φ500D

Distance between two chuck ends

1690mm

Range of inch threads

0.1-254

Range of metric threads

0.1-400

Maximum stroke/machining length

1000mm

Fast moving speed

4-6 m/min

Minimum setting unit

0.001mm

Repeat positioning accuracy

0.025mm

Maximum stroke

480mm

Fast moving speed

3-5 m/min

Minimum setting unit

0.001mm

Repeat positioning accuracy

0.016mm

Tailstock sleeve diameter

Φ100mm

Tailstock sleeve taper hole

MT5

Tailstock quill stroke

250mm

Section of turning tool

32x32mm

Electric tool carrier

Four-station LDB4-120(6163A)

           240x240mm

Machine size

3600x2000x2100mm

Gross weight/Net weight

5.8/5.6

Standard Configuration:

1) CNC system: GSK980.
2) Front and rear three-jaw manual chuck.
3) Vertical four-station electric turret.
4) With tailstock.
5) Automatic lubrication system.
6) Turning cooling system.
7) The rear bracket.
8) Voltage:380v 50hz 3phases.
