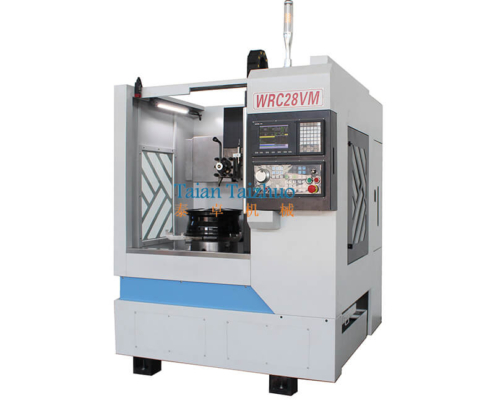

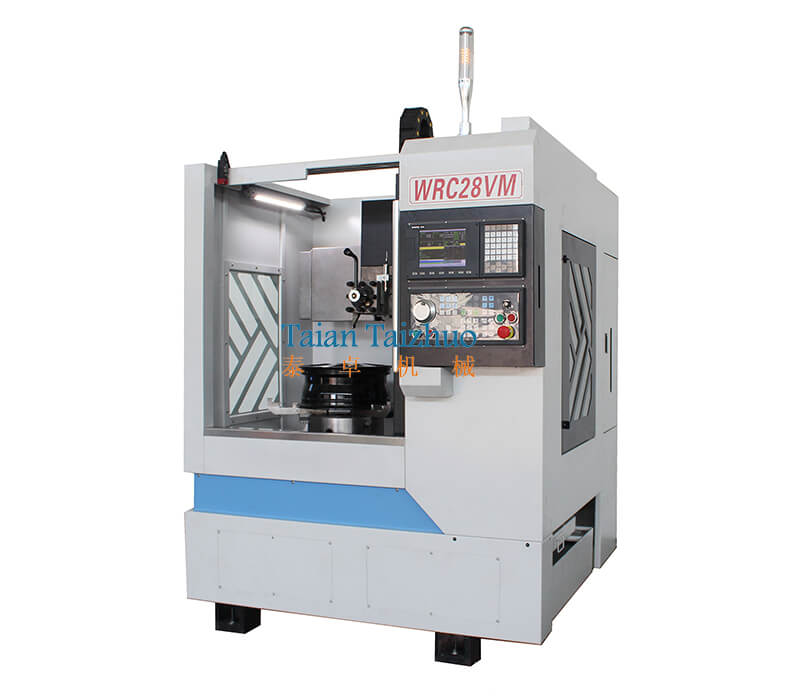

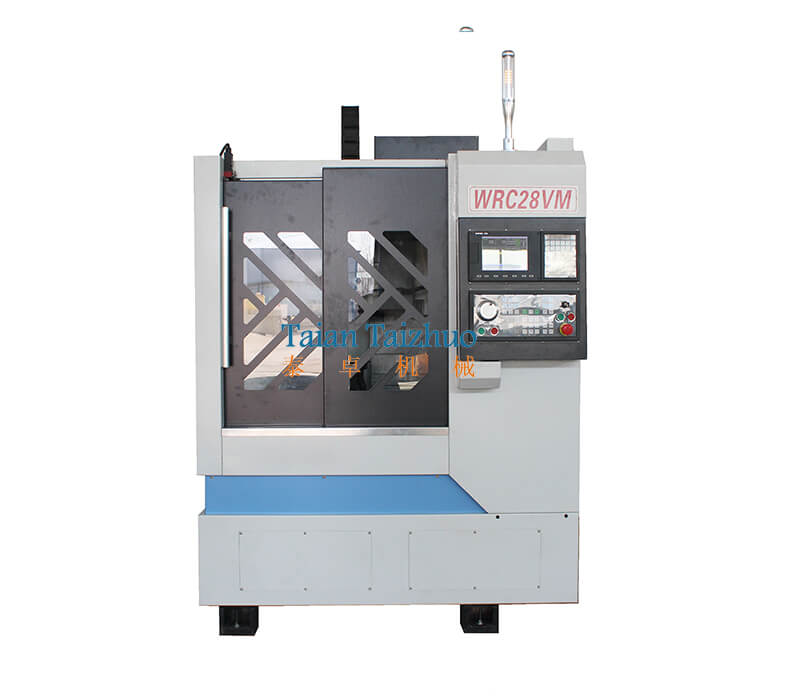

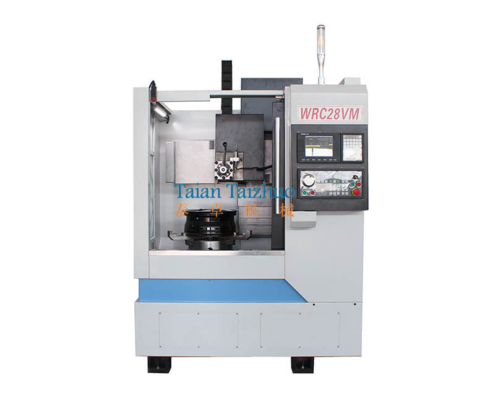

WRC28VM Wheel Repair Equipment China Suppliers

Wheel Repair Equipment Datasheet

Item	WRC28VM
Max. swing over bed	820mm
Max. process diameter of wheel	780mm
Max. size of wheel repair	30”
Chuck diameter	325mm
Spindle speed	50-1500rpm
Cutting speed	0.1-1000mm/min
Tool post	Manual 4 position tool post
Main motor power	7.5kw
Weight	1300kg
Dimension	1500×1820×2050mm

Standard Configuration:

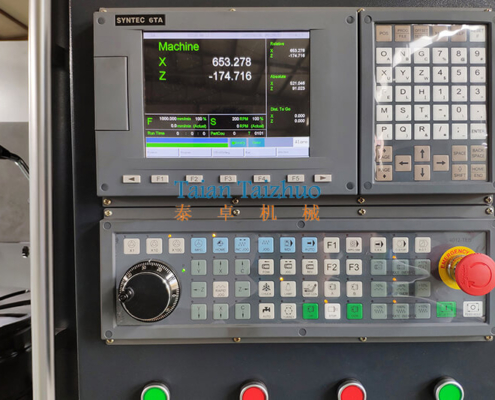

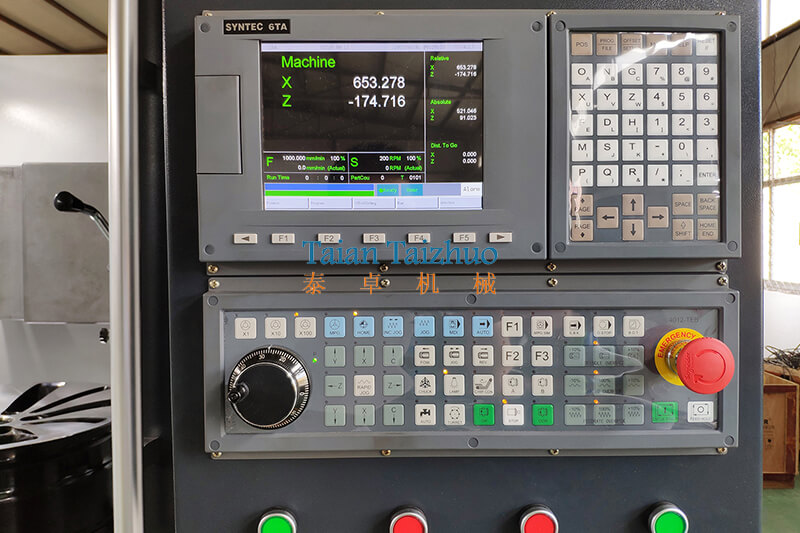

1-CNC Controller: Taiwan SYNTEC 6TA.
2-Four station manual turret.
3-With special 3-jaw soft jaws.
4-Automatic lubrication system.

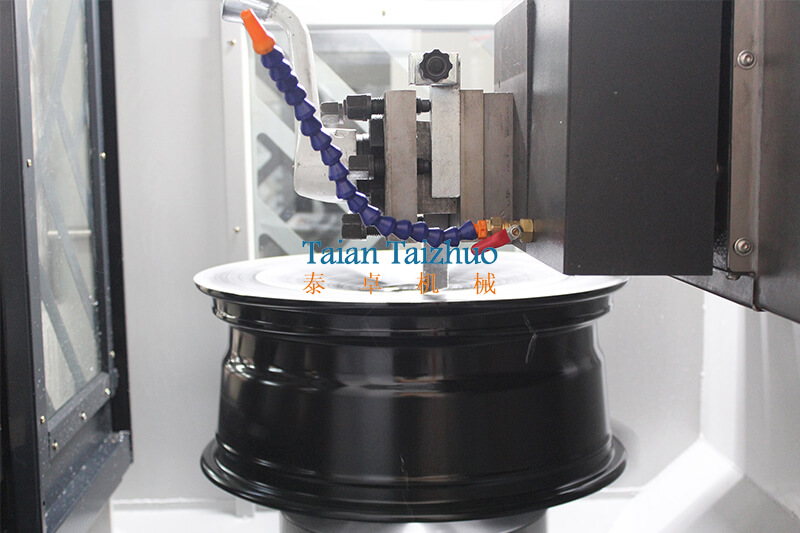

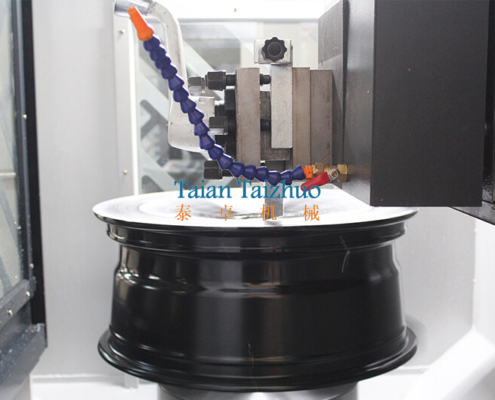

5-Turning the cooling system.

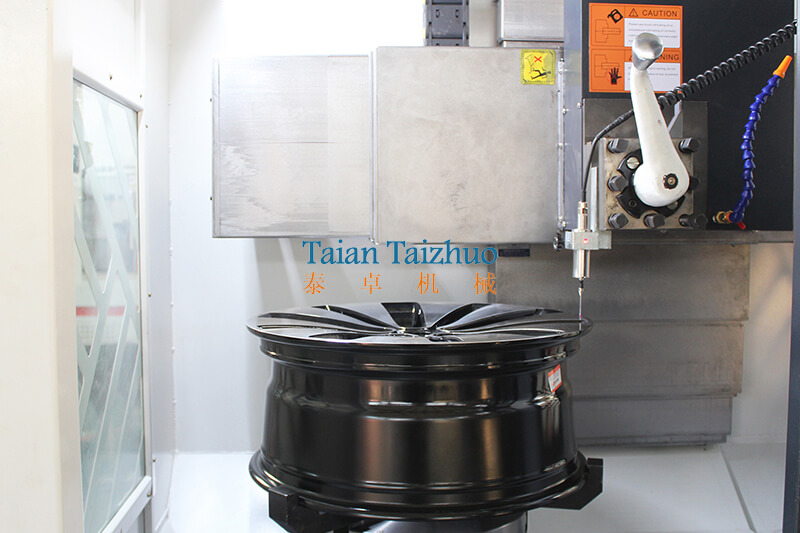

6-With probing system.
7-One normal cutter tool.
8-One normal diamond probe.
9-Training video.
10-Special optimize software.
11-U disk (operation manual).
12-Standard export wooden case.
13-Taiwan Hiwin linear guideway.
