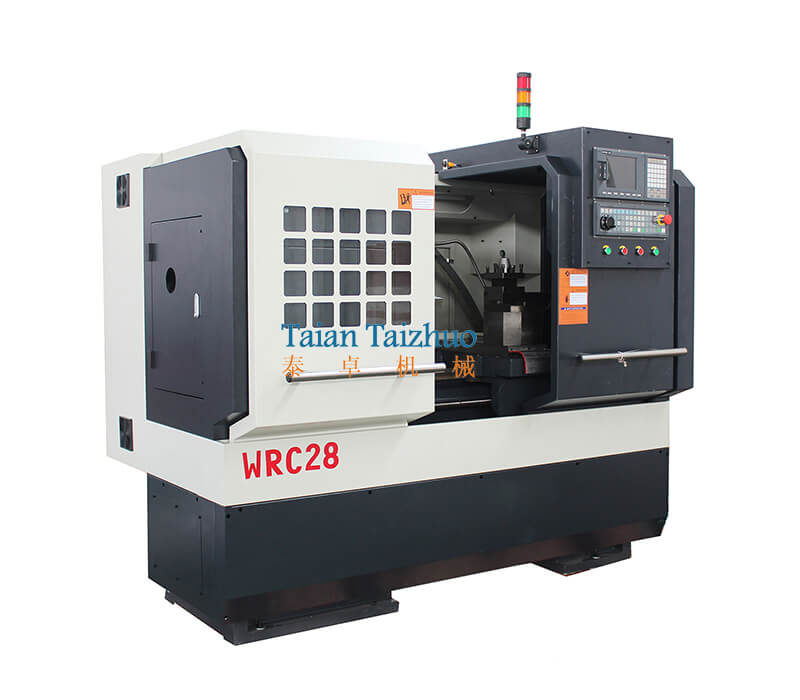

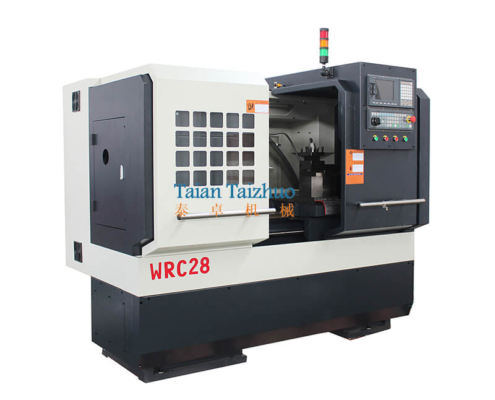

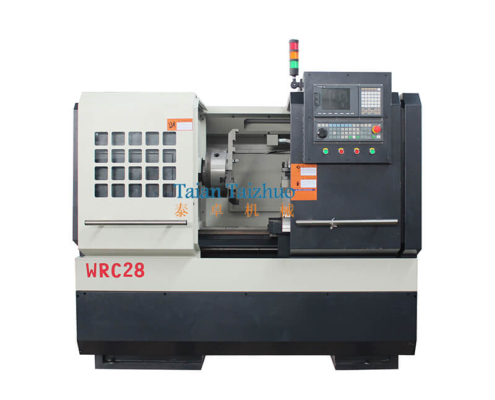

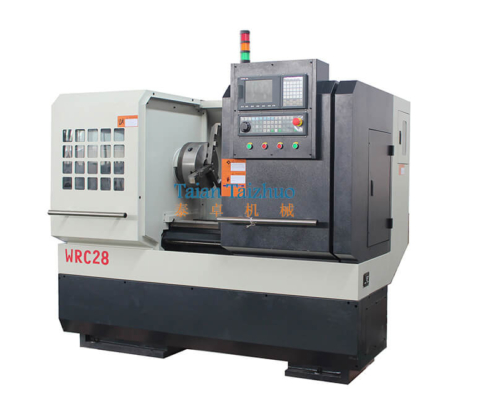

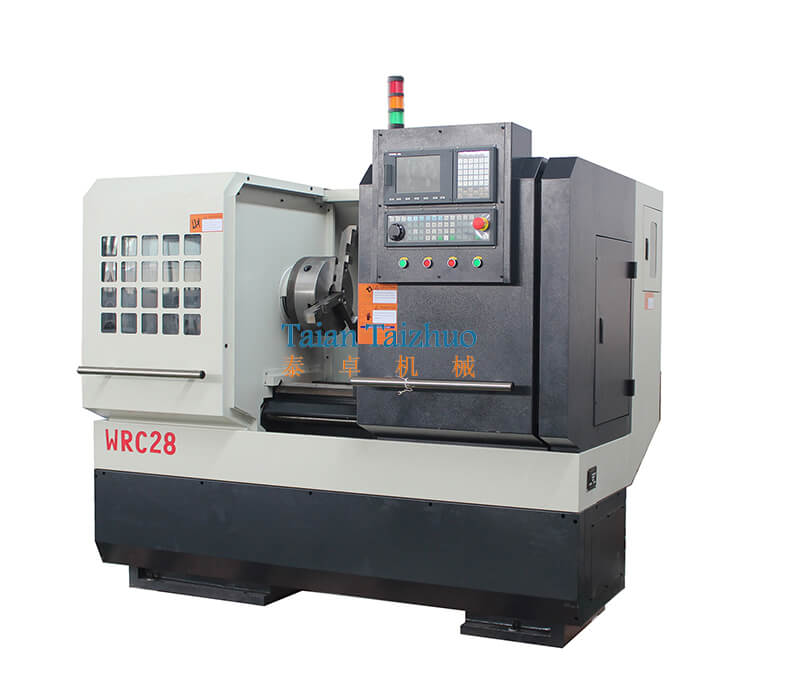

Wheel Repair Equipment Datasheet
Model |
WRC28 |
Max. swing over bed |
770mm |
Max. Diameter of alloy wheel |
28inch |
Chuck size |
320mm |
Range of Spindle speed(RPM) |
50-2000rpm |
Spindle bore(mm) |
60mm |
Stations of tool carrier |
4 position tool post |
Max. size of tool post |
25x25mm |
Main motor power |
5.5kw |
Machine size(LxWxH)(mm) |
2300x1750x1950 |
Net weight |
2700kg |
Standard Configuration:

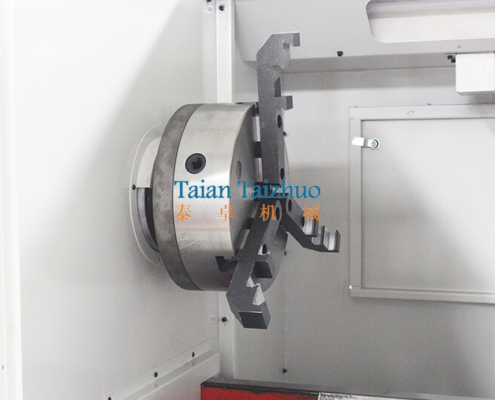

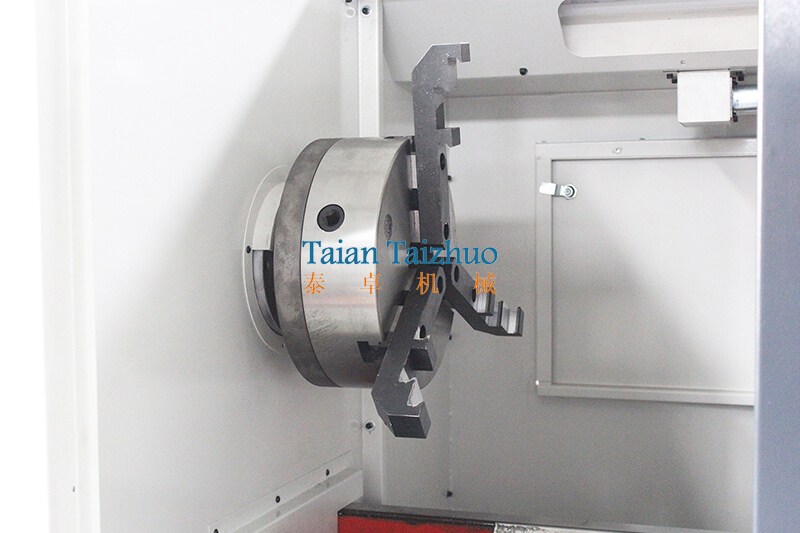

1-3-Jaw Chuck (With Special Soft Jaws);

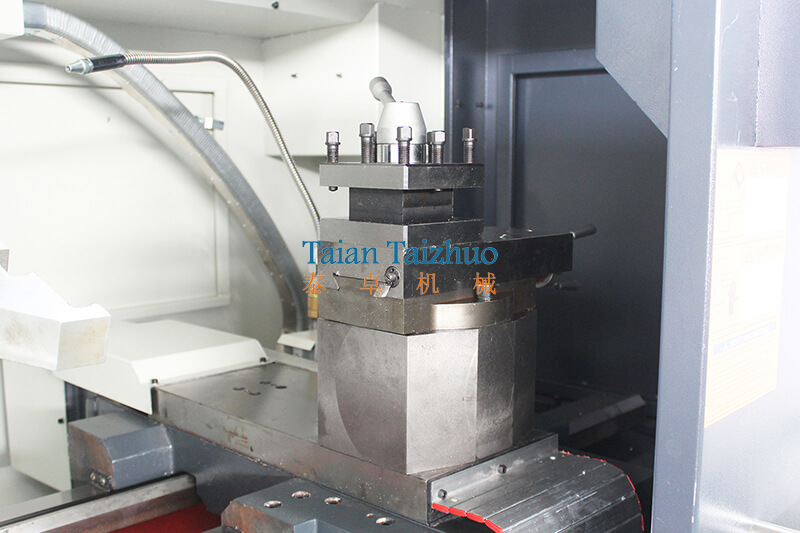

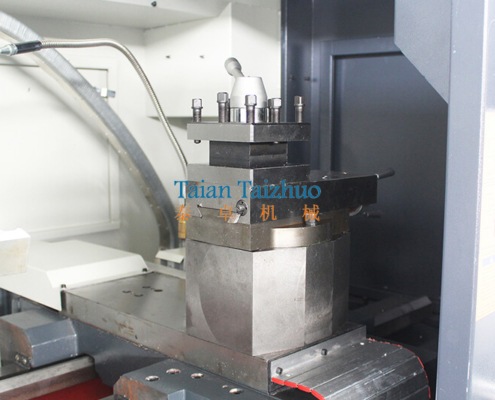

2-Manual Quick Change Tool post, 4-station turret;
3-Automatic lubrication system;
4-Turning cooling system;
5-With probing system (TP300 Pioneer Sensing Probe TP300);
6-Diamond Cutter 1 set;

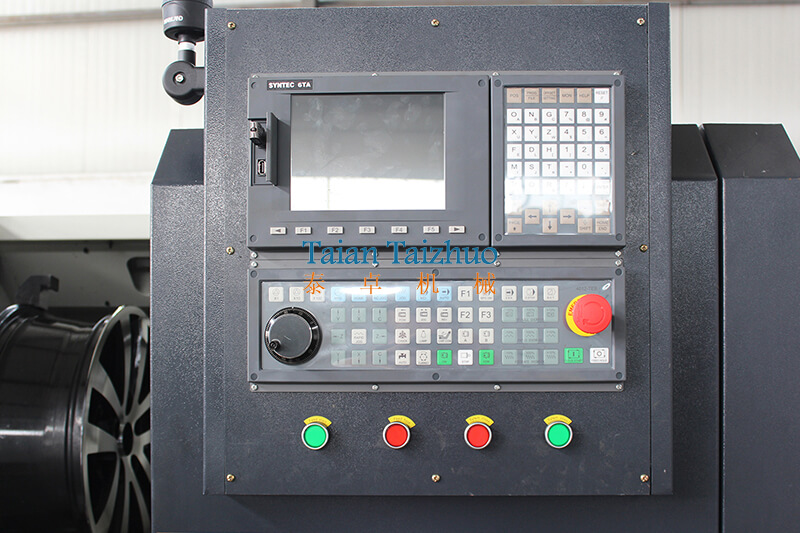

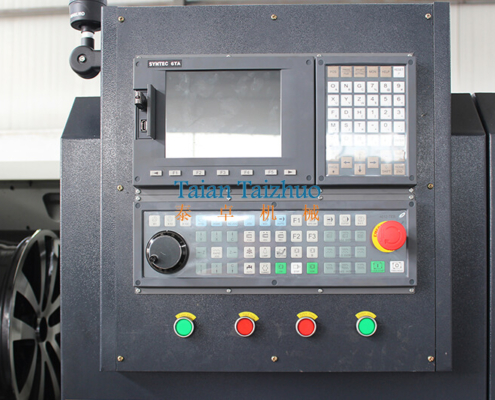

7-CNC controller SYNTEC;
8-Full Enclose (Security Guard Door);
9-Specific Digital Optimization Software;
10-Training Video CD;
11-Work Lighting System.
Optional Configuration:
1. CNC system: KND1000, Touch Screen, Centroid.
2. Custom made exclusive appearance.
