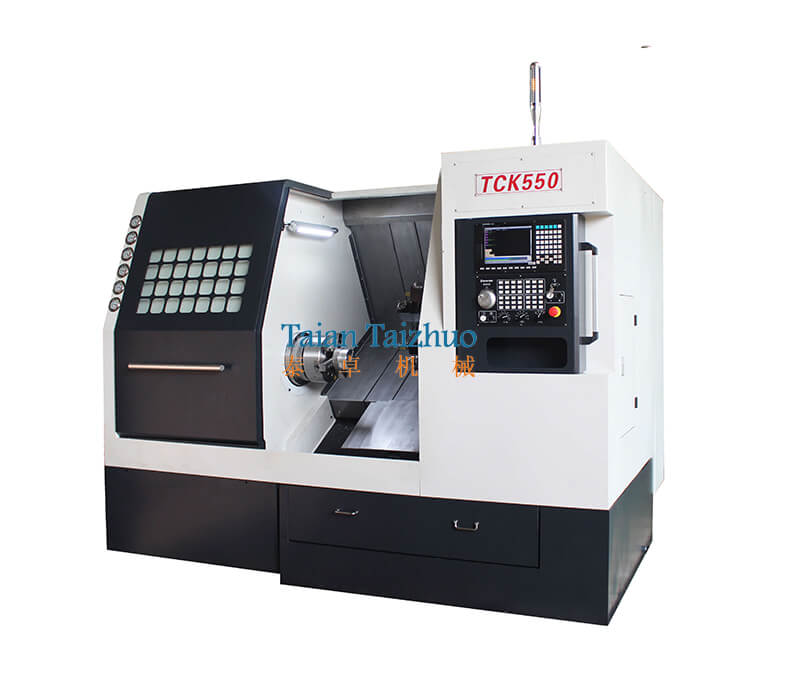

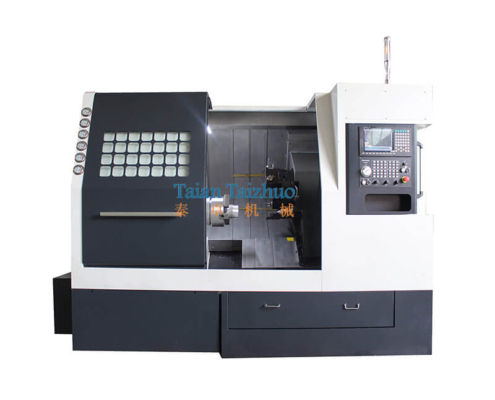

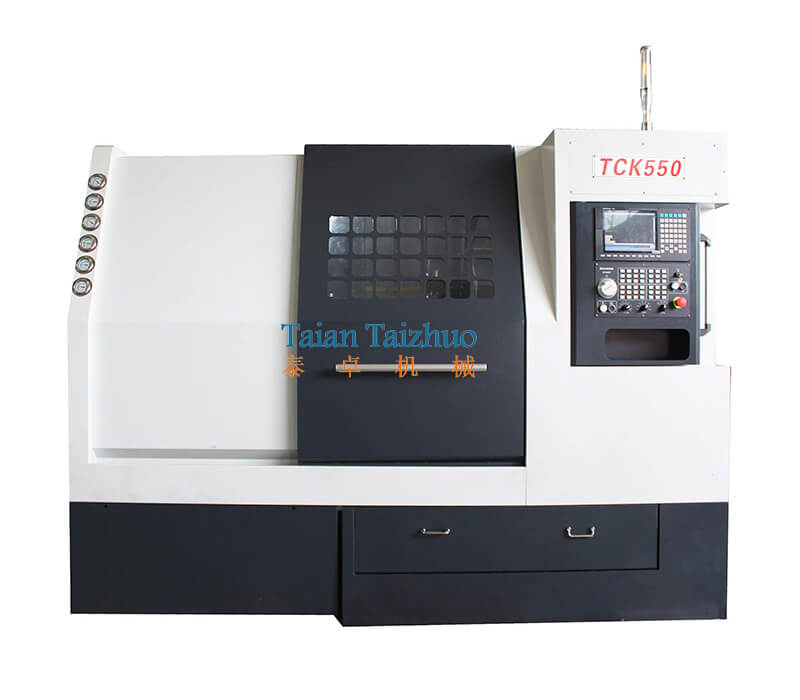

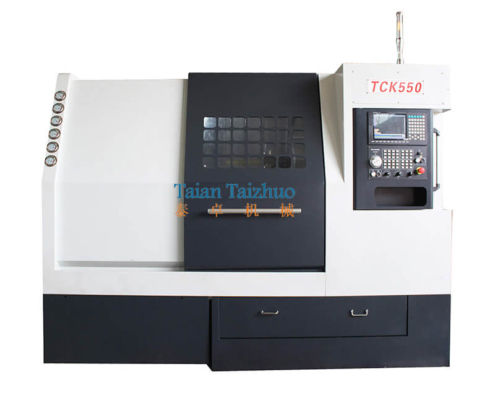

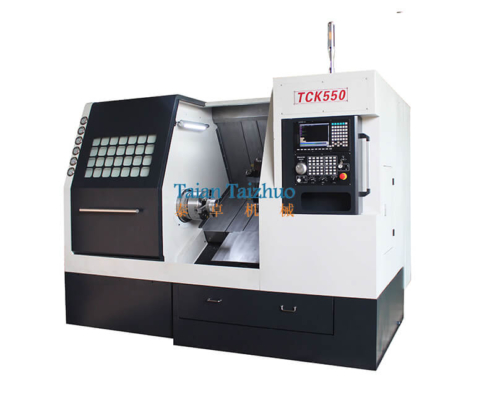

Slant Bed CNC Turning Center Datasheet
Item |
Unit |
parameter |
|
Working range |
Max swing over bed |
mm |
φ540 |
Max swing over slide |
mm |
φ270 |
|
Max processing dia |
mm |
φ400 |
|
Max processing length |
mm |
550 |
|
spindle |
Max spindle speed |
r/min |
100-3000rpm |
Spindle runout |
mm |
0.008/300 |
|
Spindle bore |
mm |
Φ65 |
|
Chuck dia |
inch |
8 |
|
Spindle motor power |
kw |
7.5 |
|
Travel |
X axis travel |
mm |
220 |
Z axis travel |
mm |
550 |
|
Feed |
X axis rapid feed |
m/min |
18 |
Z axis rapid feed |
m/min |
18 |
|
Cutting feed |
mm/min |
1-5000 |
|
Tail stock |
Tail stock travel |
mm |
400 |
Tail stock feed type |
manual |
||
Guide way |
inclined degree |
degree |
45 |
Type |
Linear guide Z 35, X 30 |
||
Accuracy |
Position accuracy |
mm |
0.016 |
Repeatability |
mm |
0.008 |
|
Other |
Machine net weight |
Kgs |
3800 |
Dimension size |
mm |
2920*1680*2070 |
|
Standard configuration:
1) CNC controller: GSK980TC3.

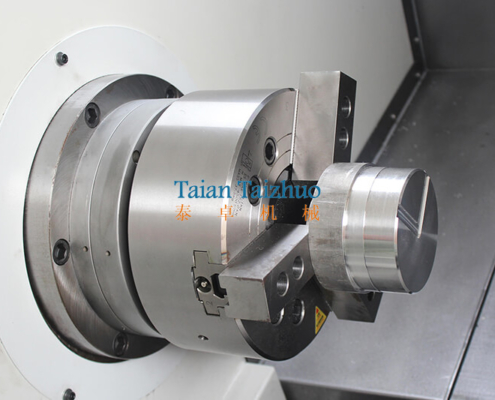

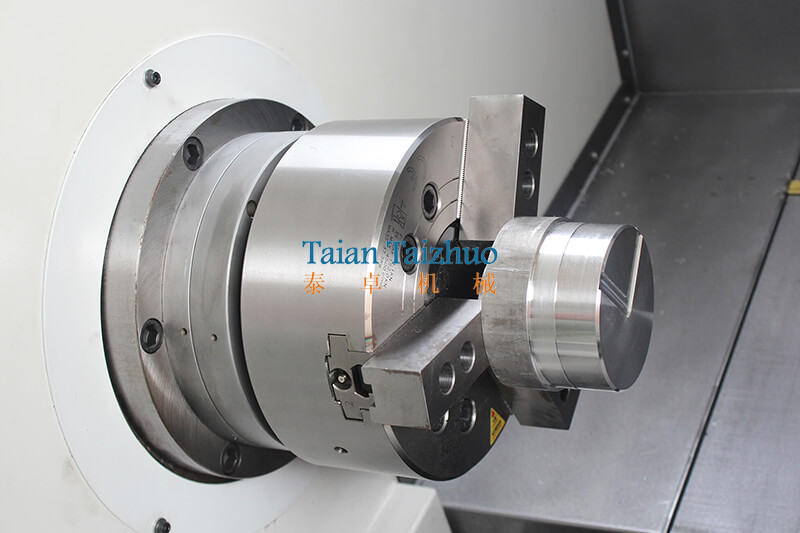

2) Hydraulic chuck with hydraulic station.

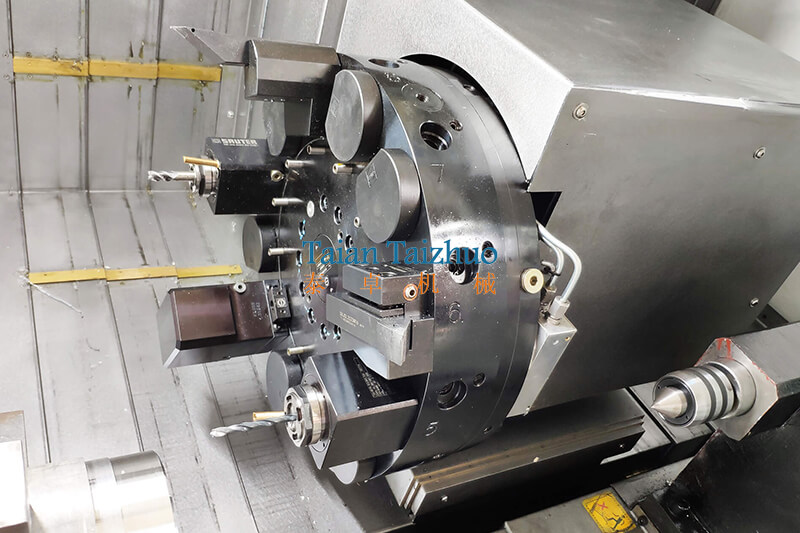

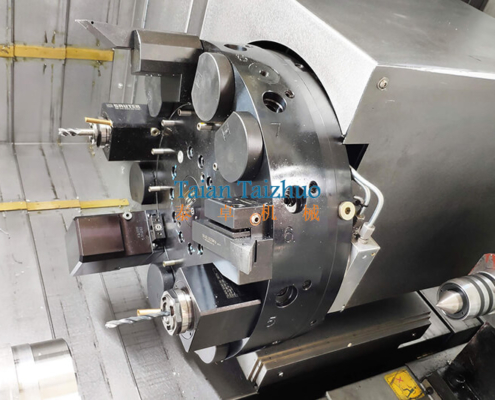

3) 8-station electric turret.

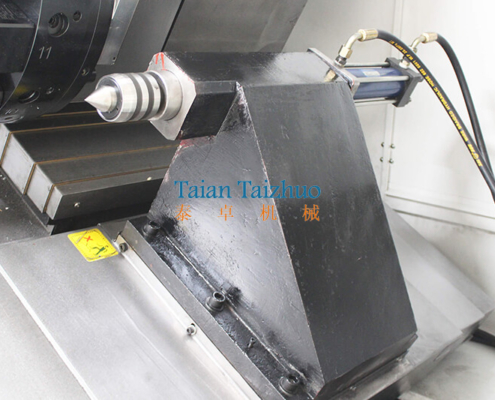

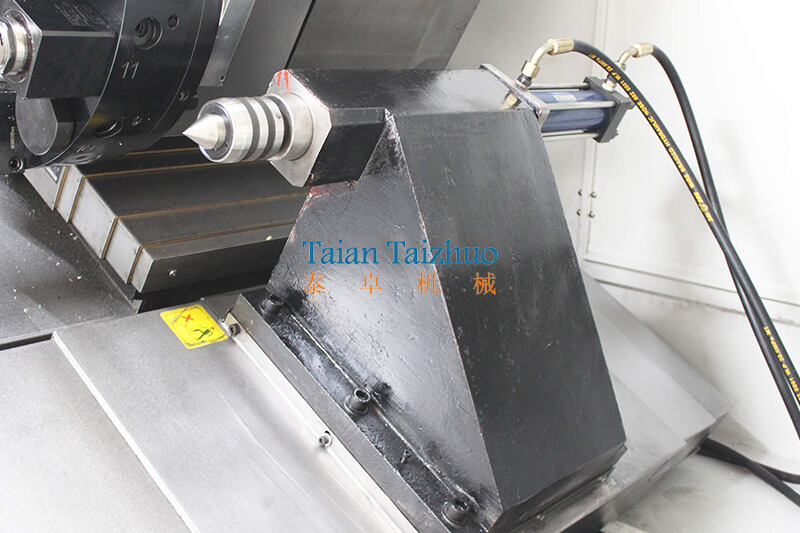

4) Hydraulic tailstock.
5) Linear guide ways.
6) Main motor servo motor.
7) Cooling system.
8) Lighting system.
9) Automatic lubrication system.
Optional Configurations:
1) GSK, Siemens, Fanuc, SYNTEC, KND, GUNT.
2) Hydraulic collet, Pneumatic chuck, Manual chuck.
3) Hydraulic tailstock, Pneumatic tailstock.
4) Hydraulic turret, Power turret.
4) Automatic chip conveyor.
