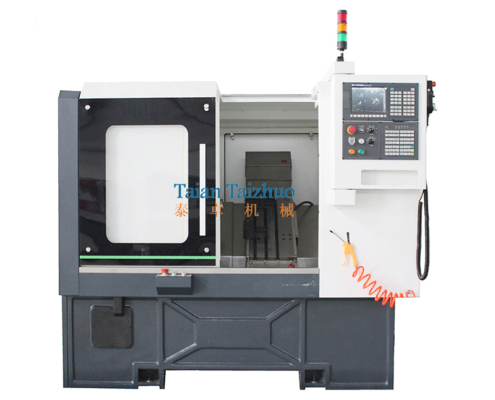

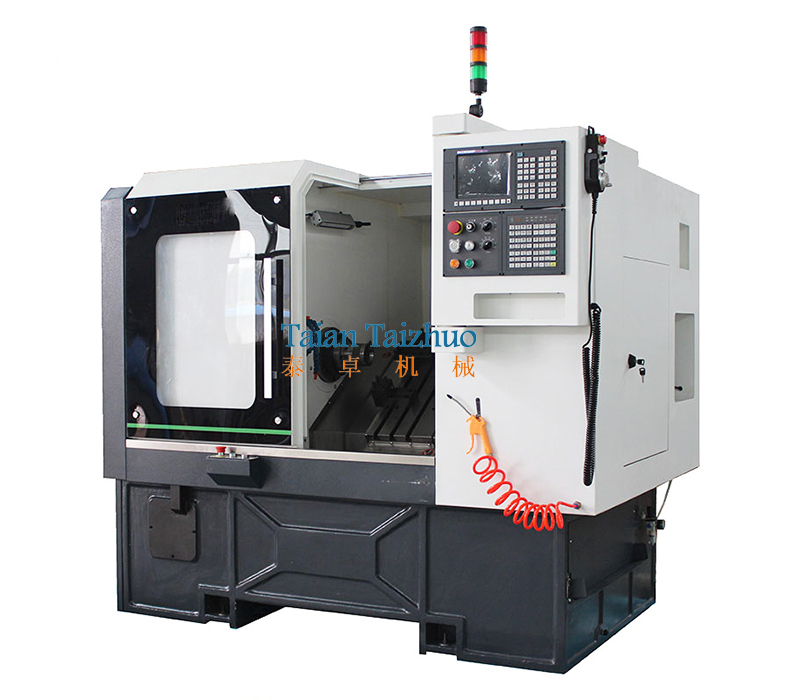

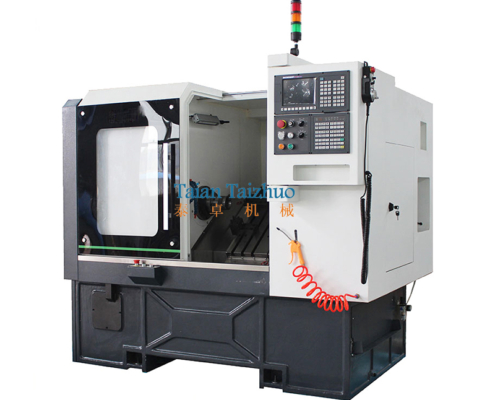

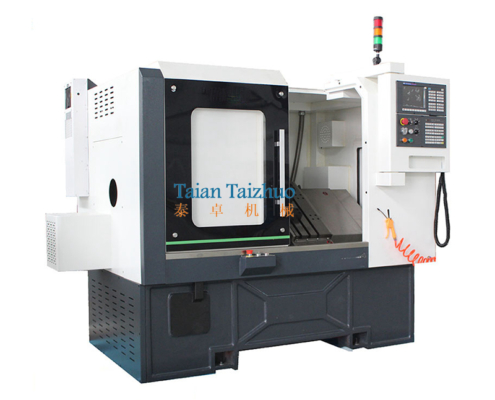

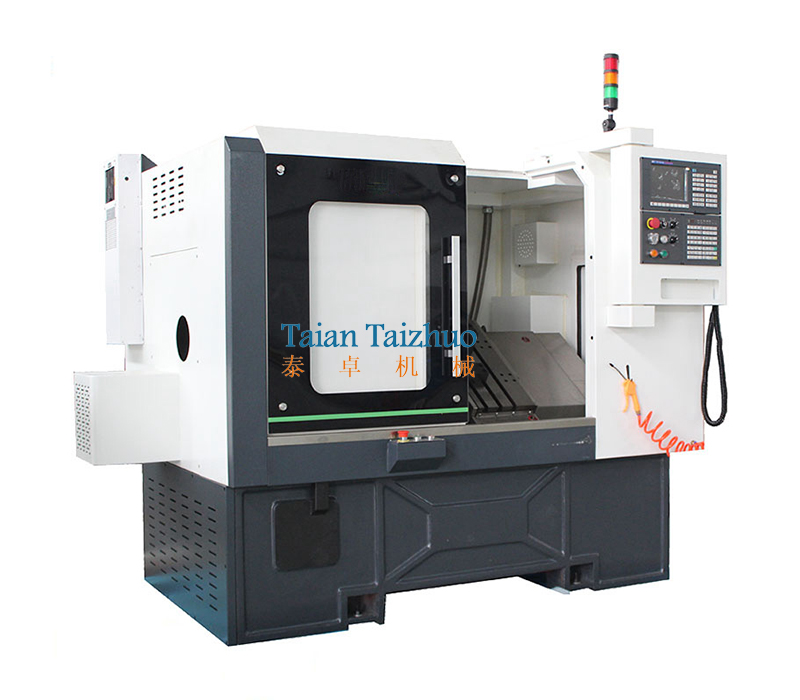

TCK46P Slant Bed CNC Turning Center China Suppliers
Slant Bed CNC Turning Center Datasheet
Specification/Model |
TCK46P |
|
Max. Swing diameter over bed |
360mm |
|
Max.Swing over carriage |
110mm |
|
Max.turning length |
330mm |
|
Carriage length |
600mm |
|
Distance between carriage of spindle |
55mm |
|
Spindle Nose |
A2-5 |
|
Spindle speed range |
50-5000r/min |
|
Hole through spindle |
56mm |
|
Hole through spindle |
45mm |
|
Spindle(C axis)Motor |
5.5KW |
|
Travel |
X axis |
410mm |
Z axis |
370mm |
|
Turret type |
Gang type tool post |
|
Rapid speed |
X axis |
2400mm/min |
Z axis |
2400mm/min |
|
X/Y/Z Positioning accuracy |
0.006mm |
|
X/Y/Z repositioning accuracy |
0.003mm |
|
Spindle(C Axis)dividing positioning accuracy |
0.02”(arc-second) |
|
Spindle(C Axis)dividing repositioning accuracy |
0.006”(arc-second) |
|
Weight |
3000KG |
|
Overall dimensions |
2600x1700x1600mm |
|
Standard configuration:

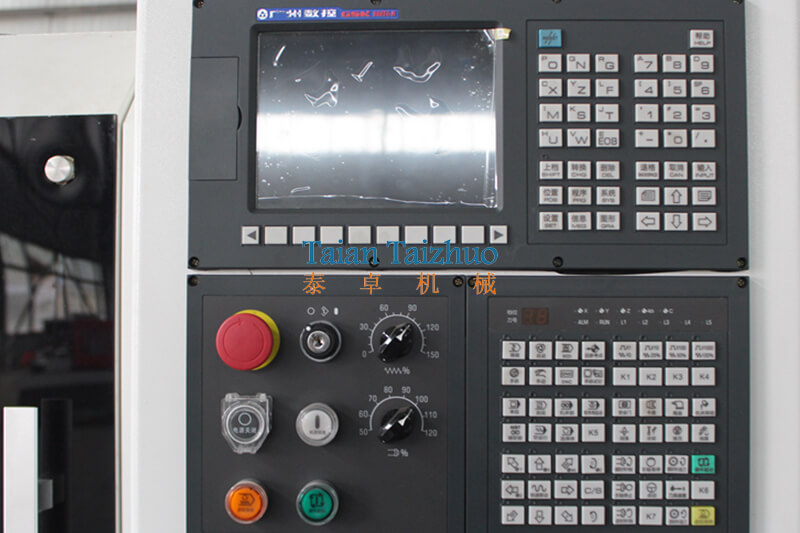

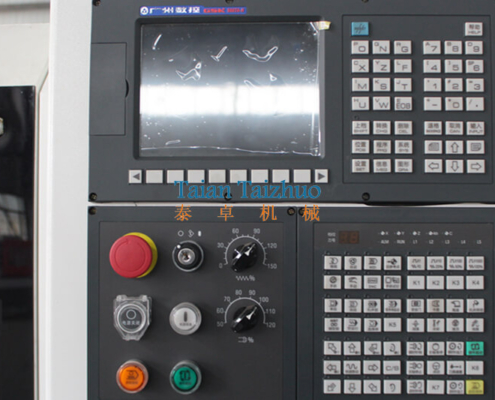

1) CNC controller: GSK988TA-H.

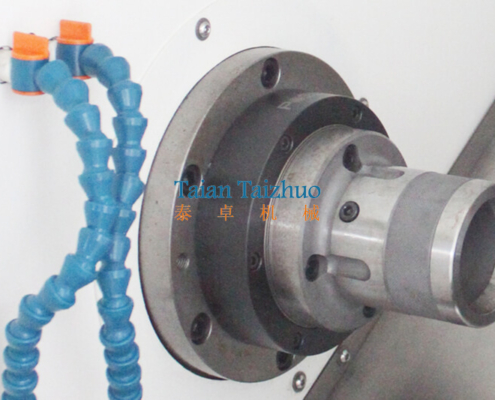

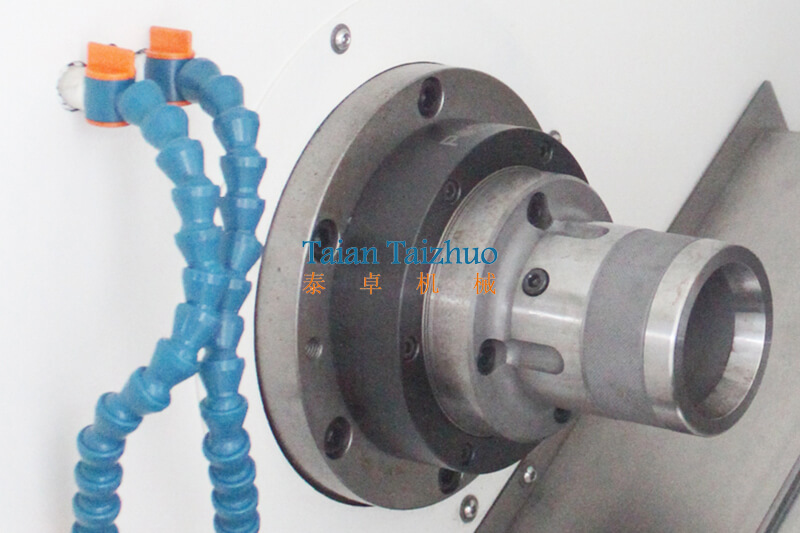

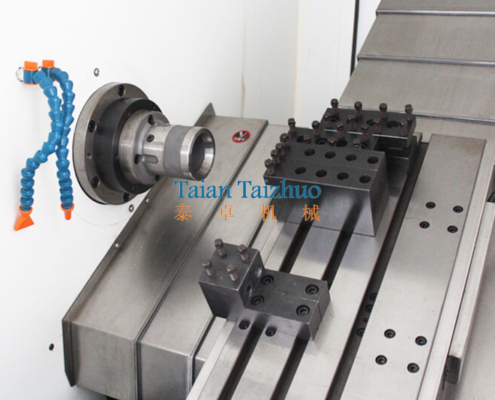

2) Hydraulic collet with hydraulic station.

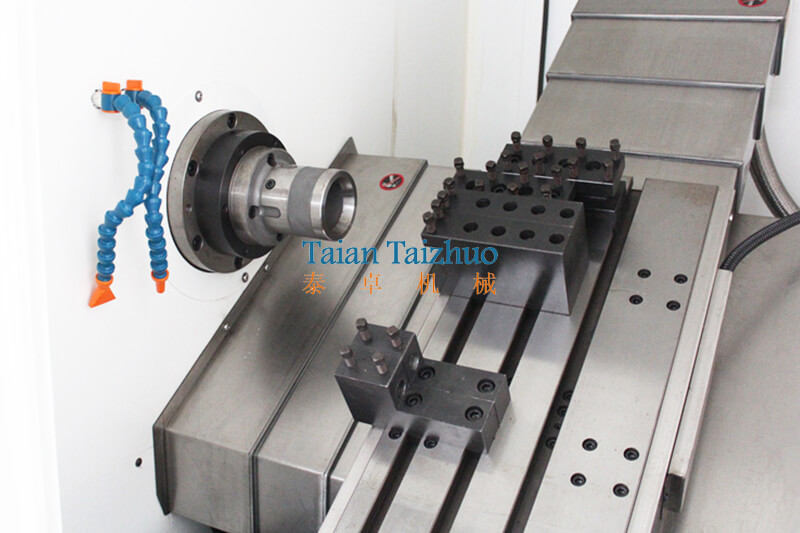

3) Gang type tool post.
4) Linear guide ways.
5) Cooling system.
6) Lighting system.
7) Automatic lubrication system.
Optional Configurations:
1) GSK, Siemens, Fanuc, SYNTEC, KND, GUNT.
2) Hydraulic chuck, Pneumatic chuck, Manual chuck.
3) Electric turret, Hydraulic turret, Power turret.
4) Automatic chip conveyor.
5) Y axis and power head.
6) Automatic bar feeder.
